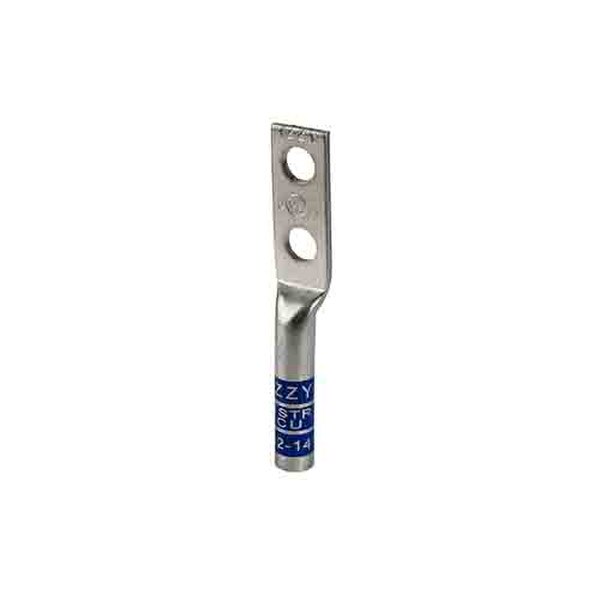

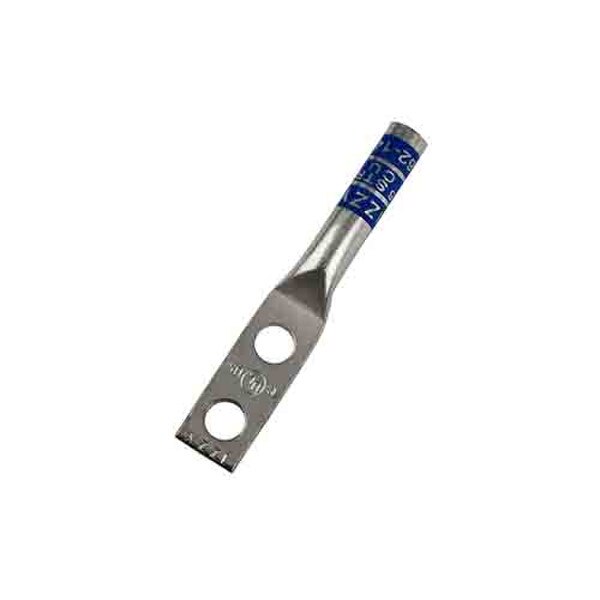

IZZY Lug, #6 Str - 2 hole, #10 x 5/8" (W)
Details
Description
# 6 stranded – 2 hole, #10 hole, 5/8” spacing, long barrel copper compression lug with inspection window
Quick Reference
Wire Size: 6 AWG
Wire Type: Stranded Copper
Wire Strip Length: 1-1/8"
# of Holes: 2
Hole Size: #10
Hole Spacing: 5/8"
Manufactured with High Conductivity Seamless Copper Tube
Electro-Tinned Plated
UL Listed for Applications up to 35kv
90 ° C UL Temperature Rating
CSA Certified
