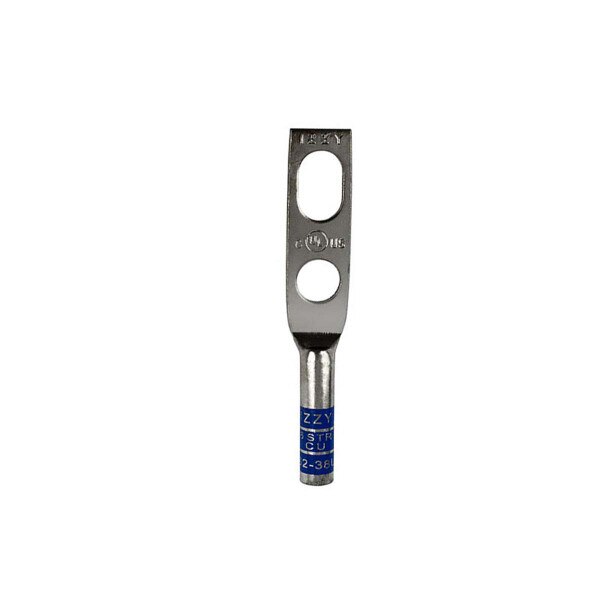

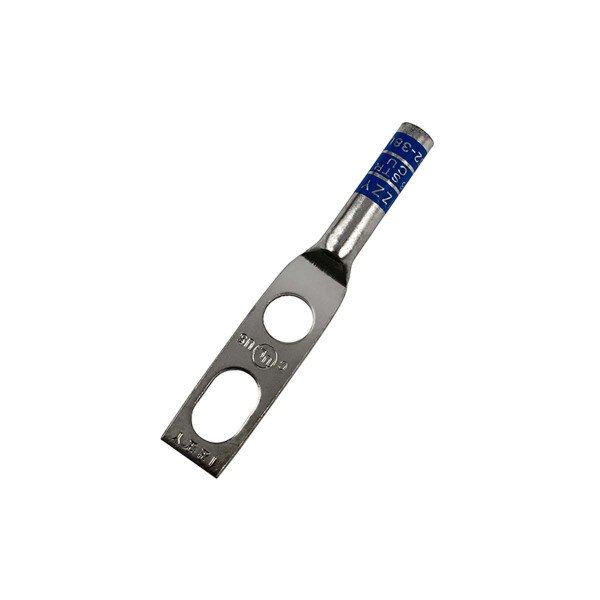

IZZY Lug, #6 Str - 2 hole, 3/8" x U (W)

Description
# 6 stranded – 2 hole universal, 3/4” – 1” spacing, long barrel copper compression lug with inspection window
Quick Reference

Wire Size: 6 AWG
Wire Type: Stranded Copper
Wire Strip Length: 1-1/8?
# of Holes: 2
Hole Size: 3/8” & slotted
Hole Spacing: 3/4” – 1” slotted


Manufactured with High Conductivity Seamless Copper Tube
Electro-Tinned Plated
UL Listed for Applications up to 35kv
90 ° C UL Temperature Rating
CSA Certified
