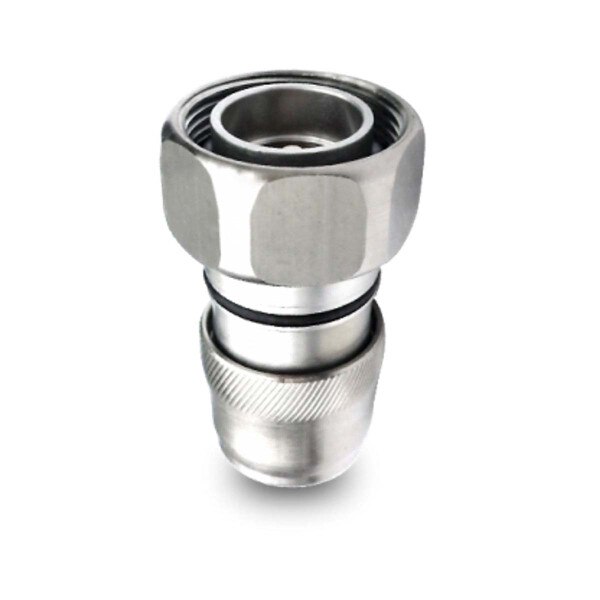

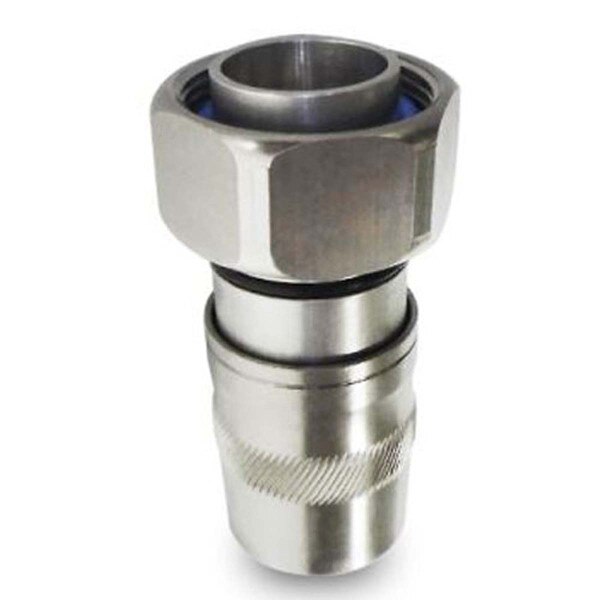

Coax Connector, 1/2" Superflex, PPC Style, Din Male

General Specification Interface/gender 7-16 DIN male Cables supported1 Andrew FSJ4, FSJ4RK, FSJ4RN-50; RFS SCF12; NK Draka RFF1200; Eupen EC4HF; Leoni Flexline 1/2"S; LS/Superior Essex HFSC 12D; Hansen RF5012S, RF5012SZ; Rosenbeger SL 1/2" S; HUBER+SUHNER SF 1/2 HF Weight 141.1 g | 0.311 lb JMA Weather Protection System WPS-4S Tools required JMA part number Comment Cable preparation SP-12S No coring required Connector compression HCG-FRAMESET-1/2, HCG-CC Insert A Torque wrench TQ-114-F18 18 lbf·ft | 24.4 N·m Frequency band VSWR Return loss (dB) 555–1000 MHz (0-1 GHz) 1.02 40 1000–2700 MHz (1-2 GHz) 1.03 38 2700–3800 MHz (2-4 GHz) 1.05 30 3800–6000 MHz (4-6 GHz) 1.08 26 Electrical Specification Comment Connector impedance 50 ohm Operating frequency band DC–6 GHz 3rd order IMD dynamic, (PIM) -161 dBc, typical IEC 60237-02 DC test voltage 2500 V Center contact resistance ? 0.8 milliohm Outer contact continuity 1.50 milliohm max. Average power 1000 W @ 900 MHz Peak power, max. 16 kW Insertion loss, typical 0.05 dB Per connector Shielding effectiveness < -120 dB @ 0-1 GHz Mechanical Specification Comment Pull force combined .78 kN | >175 lb Cable limited Cable retention torque 6.7 N·m | 5 lbf·ft Cable limited Interface durability 500 cycles IEC 61169-4:9.5 Environmental Specification Test Operating temperature -55 °C to +85 °C (-67 °F to 185 °F) Storage temperature -55 °C to +85 °C (-67 °F to 185 °F) Accelerated UV 1000 hr ASTM G154 Immersion test method Mated & unmated, IP68 IEC 60529:2001& ANSI/SCTE 60 Water jetting test method Mated & unmated, IP66 IEC 60529:2001 Mechanical shock test method Pass IEC 60068-2-27 Thermal shock test method Pass IEC 60068-2-14 Vibration test method 100 m/s2, 2 Hz to 200 Hz IEC 61169-1:2003 Corrosion test method 1000 hr IEC 60068-2-11
