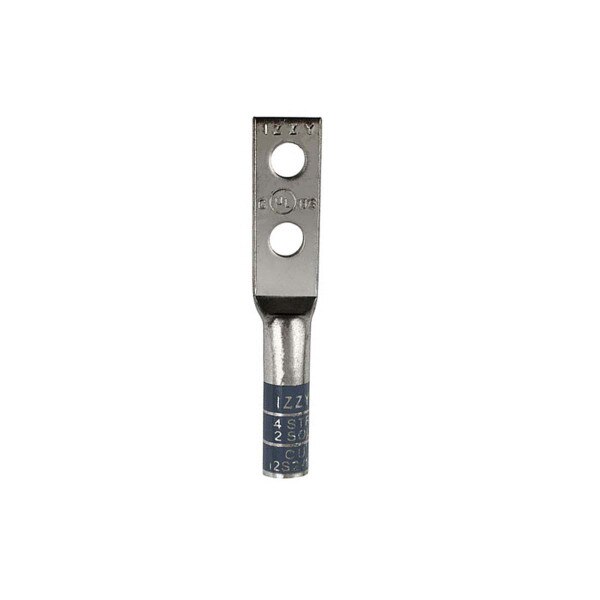

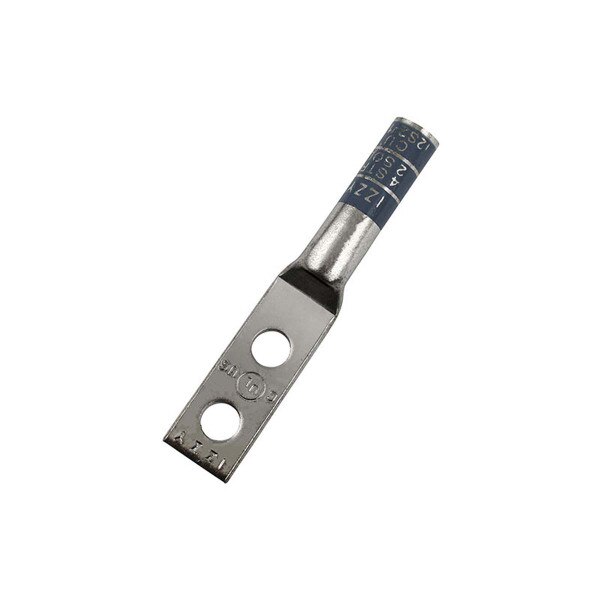

Izzy Compression Lug, Long Barrel, 2 AWG Solid / 4 AWG Code, 2 hole, 1/4" x 5/8" (W)
Description
# 2 solid & #4 stranded – 2 hole, 1/4” hole, 5/8” spacing, long barrel copper compression lug with inspection window
Quick Reference
Wire Size: 2 AWG & 4 AWG
Wire Type: 2 AWG solid copper, 4 AWG stranded copper
Wire Strip Length: 1-1/8”
# of Holes: 2
Hole Size: 1/4?
Hole Spacing: 5/8?
Manufactured with High Conductivity Seamless Copper Tube
Electro-Tinned Plated
UL Listed for Applications up to 35kv
90 ° C UL Temperature Rating
CSA Certified
# 2 solid & #4 stranded – 2 hole, 1/4” hole, 5/8” spacing, long barrel copper compression lug with inspection window
Quick Reference
Wire Size: 2 AWG & 4 AWG
Wire Type: 2 AWG solid copper, 4 AWG stranded copper
Wire Strip Length: 1-1/8”
# of Holes: 2
Hole Size: 1/4?
Hole Spacing: 5/8?
Manufactured with High Conductivity Seamless Copper Tube
Electro-Tinned Plated
UL Listed for Applications up to 35kv
90 ° C UL Temperature Rating
CSA Certified
IZZY Lug, #2 Sol / #4 Str - 2 hole, 1/4" x 5/8" (W)
