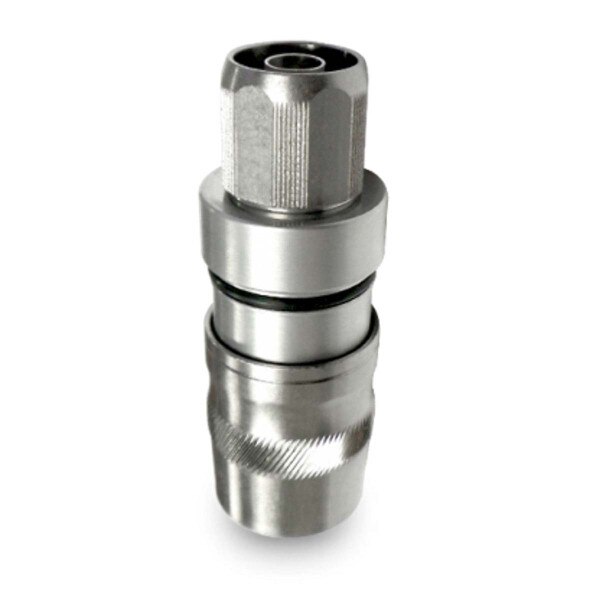

Coax Connector, 1/2" Andrew LDF4, PPC Style, N Male

SKU: 11769 Coax Connector, 1/2" Andrew LDF4, PPC Style, N Male
ASK PART #: 11769
UNITS: each
MANUFACTURER: JMA Wireless
MANUFACTURER'S PART #: UXP-NM-12
$31.11
(0) No Reviews yet
Out of Stock - Pre-order now!
Select Store to check availability.

Typically ships in 3-7 days (call for details)

Unknown stock at Manufacturer, call or email ASK for exact lead time

Quantity Available at ASK : 0

Quantity Available at Manufacturer : Unknown, call or email ASK for details

General Specification Interface/gender N male Cables supported1 Andrew LDF4, LDF4RK, LDF4 RN; RFS LCF12, LCF12-50JL; NK Draka RFA1200; Eupen EC4, Leoni Flexline 1/2"R; LS/Superior Essex HFC 12D, HFAC 12D; Hansen RF5012, RF5012Z; Rosenberger SL 1/2" R; Belden RA500, RA500R Weight 0.261 lb | 118.4 g JMA Weather Protection System WPS-N-4A Tools required JMA part number Comment Cable preparation SP-1/2-LDF4D "U" bit Connector compression HCG-FRAMESET-1/2, HCG-CC Insert B Torque wrench TW1412 14 lbf·in | 1.58 N·m Frequency band VSWR Return loss (dB) 555–1000 MHz (0-1 GHz) 1.02 40 1000–2700 MHz (1-2 GHz) 1.03 38 2700–3800 MHz (2-4 GHz) 1.05 30 3800–6000 MHz (4-6 GHz) 1.08 26 Electrical Specification Comment Connector impedance 50 ohm Operating frequency band DC–6 GHz 3rd order IMD dynamic, (PIM) -161 dBc, typical IEC 60237-02 DC test voltage 2000 V Center contact resistance ? 01.5 milliohm Outer contact continuity 0.3 milliohm max. Average power 600 W @ 900 MHz Peak power, max. 10 kW Insertion loss, typical 0.05 dB Per connector Shielding effectiveness < -120 dB @ 0-1 GHz Mechanical Specification Comment Pull force combined 1.1 kN | >250 lb Cable limited Cable retention torque 6.7 N·m | 5 lbf·ft Cable limited Interface durability 500 cycles IEC 61169-4:9.5 Environmental Specification Test Operating temperature -55 °C to +85 °C (-67 °F to 185 °F) Storage temperature -55 °C to +85 °C (-67 °F to 185 °F) Accelerated UV 1000 hr ASTM G154 Immersion test method Mated & unmated, IP68 IEC 60529:2001 & ANSI/SCTE 60 Water jetting test method Mated & unmated, IP66 IEC 60529:2001 Mechanical shock test method Pass IEC 60068-2-27 Thermal shock test method Pass IEC 60068-2-14 Vibration test method 100 m/s2, 2 Hz to 200 Hz IEC 61169-1:2003 Corrosion test method 1000 hr IEC 60068-2-11
