Sm'D
Detailed description
Description
- D shape is especially suitable for attaching devices
- Compact aluminum carabiner, for workers at height looking to reduce weight to a minimum
- Easier handling:

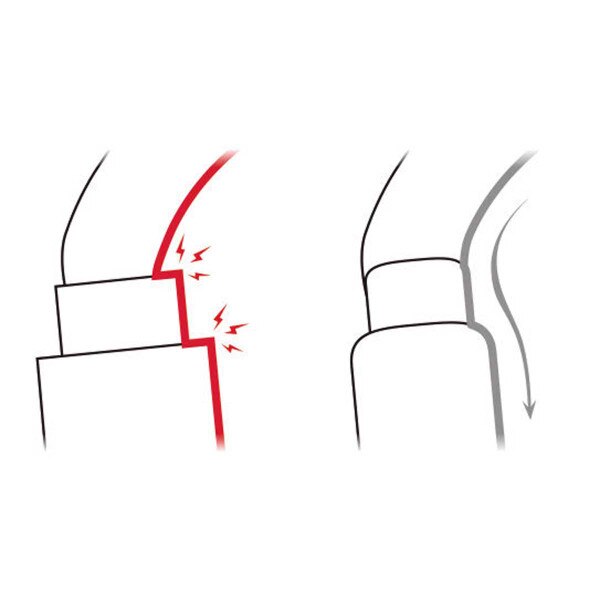

- fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner

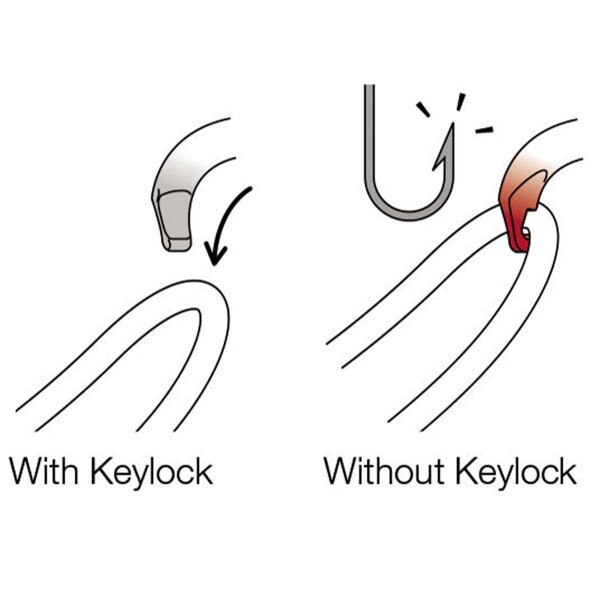

- Keylock system to avoid any involuntary snagging of the carabiner - H cross-section:
- ensures an optimal strength/weight ratio

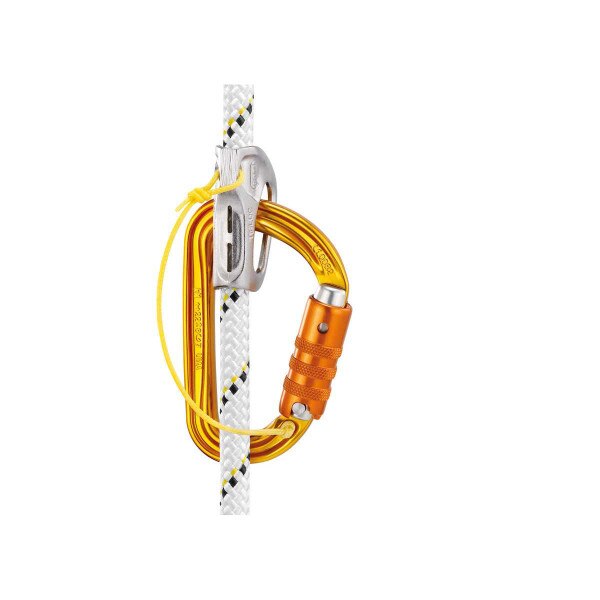

- protects markings from abrasion - Hole for connecting TIBLOC or MICRO TRAXION type devices, limiting the risk of losing them
- Two locking systems available:

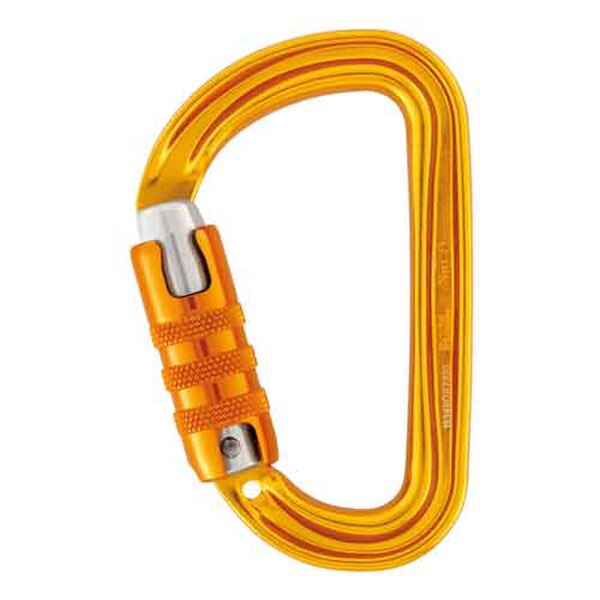

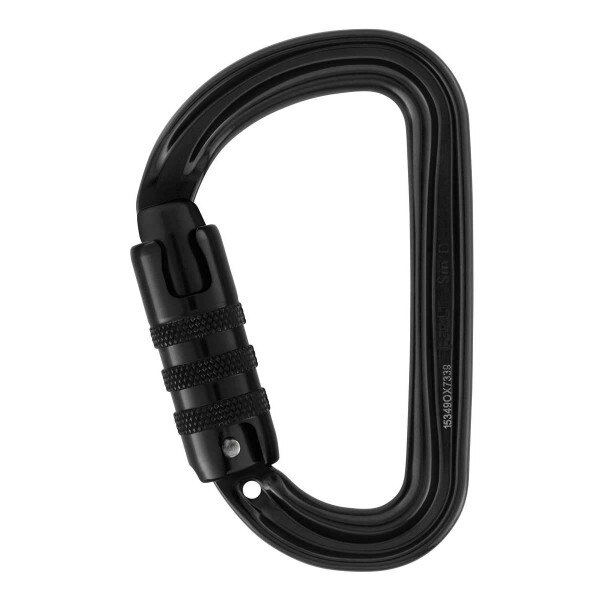

- TRIACT-LOCK: automatic locking with triple-action gate opening

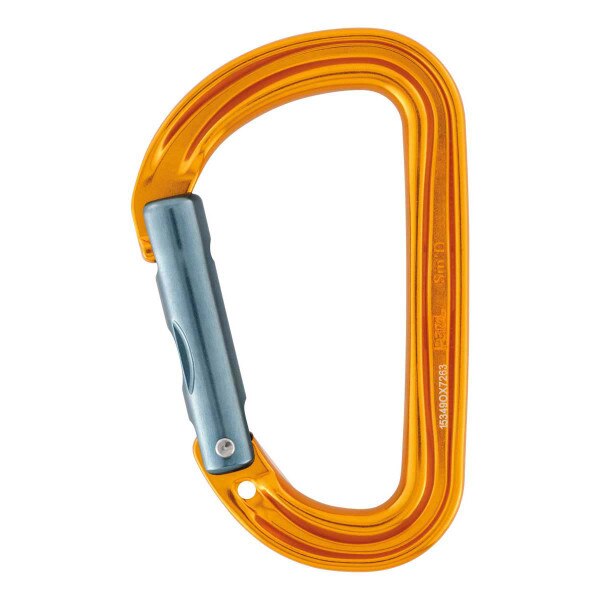

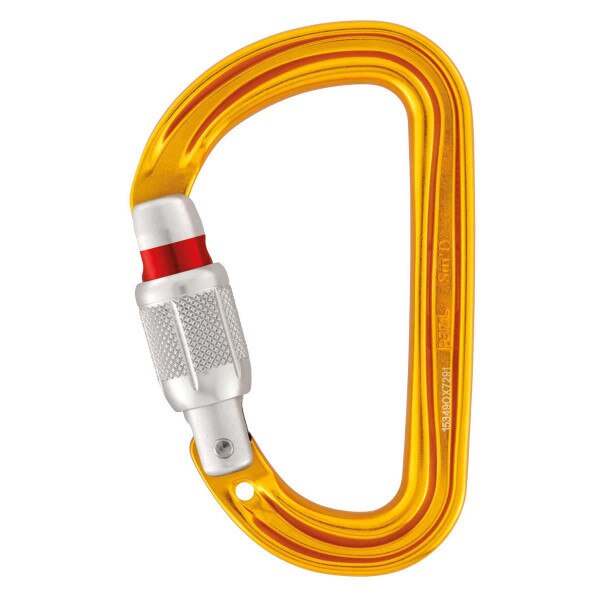

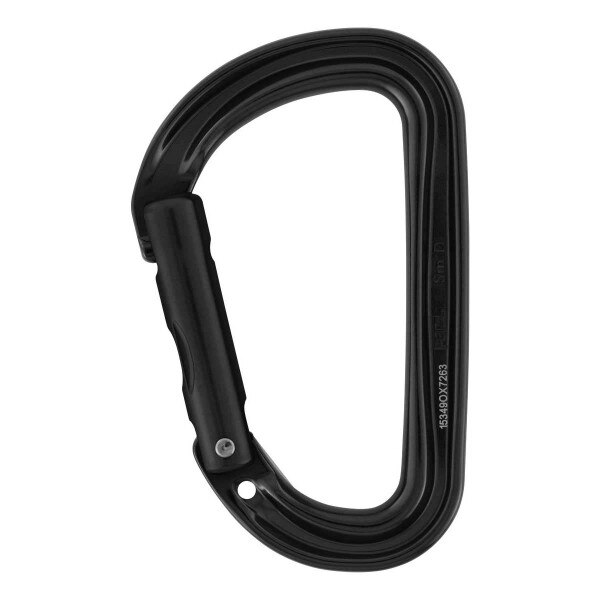

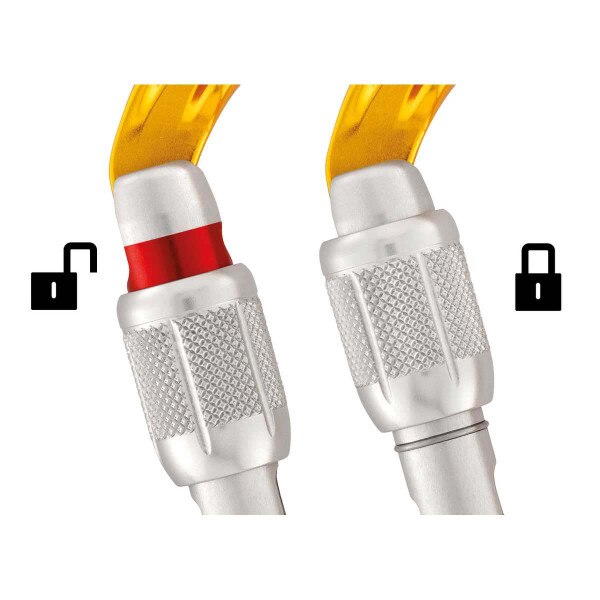

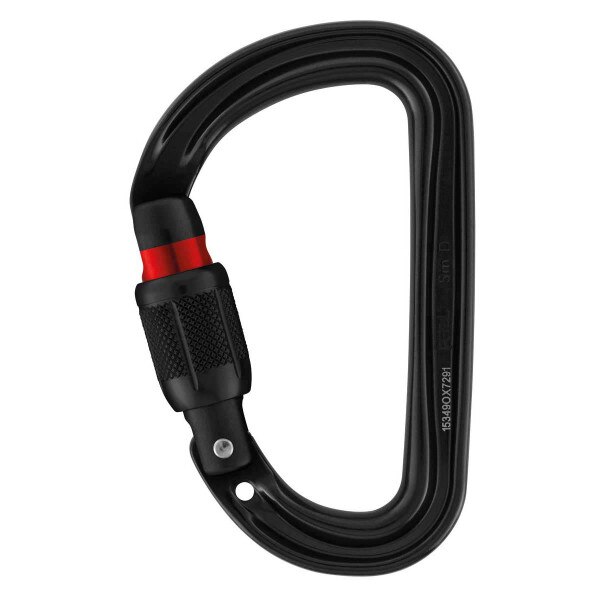

- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked - Available without locking system, for easy clipping during progression using climbing techniques
Specifications
- Material(s): aluminum
References
| References | M39A TL | M39A SL | M39A S | M39A TLN | M39A SLN | M39A SN |
|---|---|---|---|---|---|---|
| Weight | 55 g | 45 g | 40 g | 55 g | 45 g | 40 g |
| Locking system | TRIACT-LOCK | SCREW-LOCK | Without locking system | TRIACT-LOCK | SCREW-LOCK | Without locking system |
| Certification(s) | CE EN 362, CE EN 12275 type B, EAC | CE EN 362, CE EN 12275 type B, EAC | CE EN 12275 type B | CE EN 362, CE EN 12275 type B, EAC | CE EN 362, CE EN 12275 type B, EAC | CE EN 12275 type B |
| Color(s) | yellow | yellow | yellow | black | black | black |
| Major axis strength | 23 kN | 23 kN | 23 kN | 23 kN | 23 kN | 23 kN |
| Minor axis strength | 8 kN | 8 kN | 8 kN | 8 kN | 8 kN | 8 kN |
| Open gate strength | 7 kN | 7 kN | 7 kN | 7 kN | 7 kN | 7 kN |
| Gate opening | 18 mm | 20 mm | 23 mm | 18 mm | 20 mm | 23 mm |
| Guarantee | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
| Packing | 1 | 1 | 1 | 1 | 1 | 1 |
Sm'D, H-frame carabiner, with tethering hole
