Equipment Rack Earthquake Brace

General Specifications:

All hardware- Yellow Zinc
Kits Sold Individually (2 kits typically required for each rack)
One end may also be fastened to the wall (additional hardware may be required)

Note 1: If insulator is not installed in between the lengths of threaded rod, additional hard-
ware may be required

Note 2: Check thickness of equipment rack where bracket is to be installed - provided bolt
lengths may be too long/short.

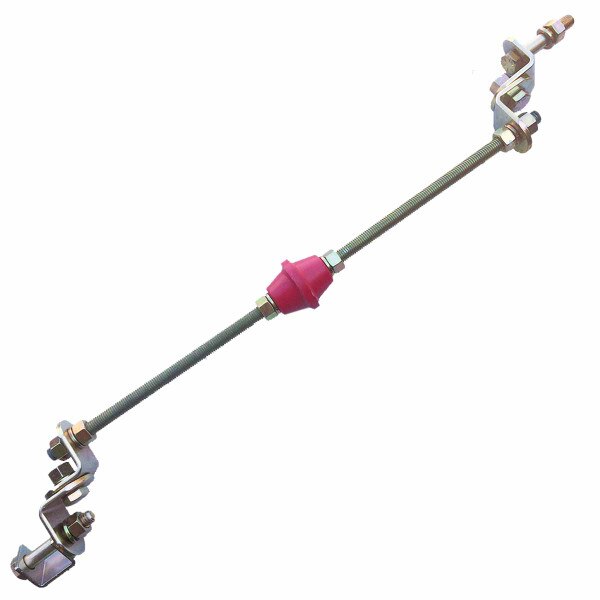

Earthquake Brace Kit Includes:

1 - 36” x 5/8”-11 Threaded Rod, Yellow Zinc (Item# 10072)
4 - 90 degree Bracing Brackets, for 5/8” Hardware, Yellow Zinc (Item# 10052)
1 - Runway Hanger Bracket for 1-1/2” Runway, for 5/8” Hardware, Yellow Zinc (Item# 10070)
1 - 5/8”-11 Red Electrical Insulator, 3600V, 2-5/8” Tall, 5/8” Deep SS Inserts (Item# 10485)
2 - 5/8”-11 x 3-1/2” Hex Bolt, 2” Thread, Yellow Zinc (Item# 10066)
2 - 5/8”-11 x 1-1/4” Hex Bolt, Full Thread, Yellow Zinc (Item# 10064)
10 - 5/8”-11 Finished Hex Nuts, Yellow Zinc (Item# 10067)
10 - 5/8” Split Lock Washers, Yellow Zinc (Item# 10068)
