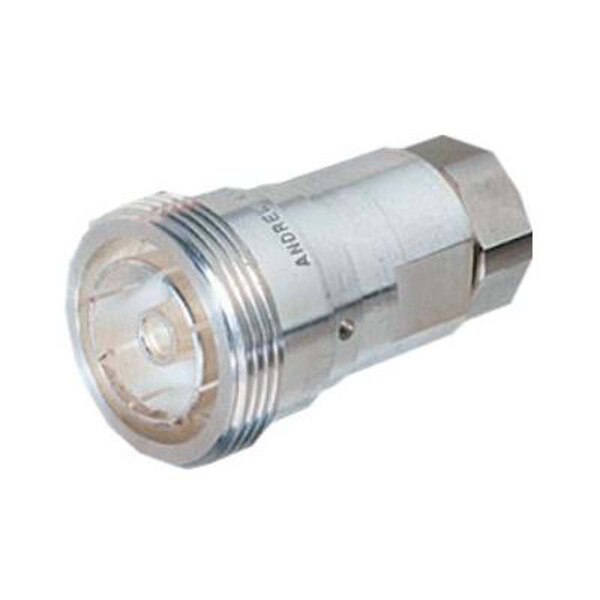

Coax Connector, 1/2" Superflex, Din Female

7-16 DIN Female for 1/2 in FSJ4-50B cable
Product Classification
Product Type Wireless and radiating connector
Product Brand HELIAX®
Ordering Note CommScope® standard product (Global)
General Specifications
Body Style Straight
Cable Family FSJ4-50B
Inner Contact Attachment Method Captivated
Inner Contact Plating Silver
Interface 7-16 DIN Female
Mounting Angle Straight
Outer Contact Attachment Method Self-flare
Outer Contact Plating Trimetal
Pressurizable No
Dimensions
Length 50.04 mm | 1.970 in
Diameter 28.96 mm | 1.140 in
Nominal Size 1/2 in
