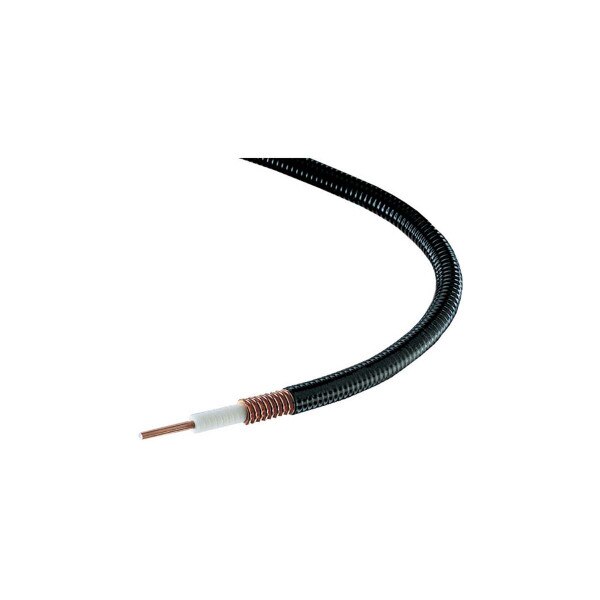

Coax Cable, 1/2" Superflexible, Andrew FSJ4-50B

FSJ4-50B, HELIAX® Superflexible Foam Coaxial Cable, corrugated
copper, 1/2 in, black PE jacket (Halogen free jacketing non-fireretardant)

Product Classification
Product Type Coaxial wireless cable
Product Brand HELIAX® | SureFlex®
Product Series FSJ4-50B
Ordering Note CommScope® standard product (Global)
General Specifications
Flexibility Superflexible
Jacket Color Black
Dimensions
Diameter Over Dielectric 8.89 mm | 0.35 in
Diameter Over Jacket 13.462 mm | 0.53 in
Inner Conductor OD 3.556 mm | 0.14 in
Outer Conductor OD 12.192 mm | 0.48 in
Nominal Size 1/2 in
Electrical Specifications
Cable Impedance 50 ohm ±1 ohm
Capacitance 82.7 pF/m | 25.207 pF/ft
dc Resistance, Inner Conductor 2.69 ohms/km | 0.82 ohms/kft
dc Resistance, Outer Conductor 5.12 ohms/km | 1.561 ohms/kft
dc Test Voltage 2500 V
Inductance 0.207 µH/m | 0.063 µH/ft
Insulation Resistance 100000 Mohms•km
Jacket Spark Test Voltage (rms) 5000 V
