Castorm© Cold Shrink by ASK Tower Supply
Details
Introducing CASTORM, our newest product lineup. CASTORM is our lineup of silicone cold shrink tubes. Each silicone cold shrink tube is specially designed to ensure a watertight seal for the connector interface that falls within it's size range. Cold shrink tubes made of high performance silicone are typically more weather resistant than your traditional EPDM cold shrink tubes. And with the silicone, we have achieved much higher shrink ratios than traditional EPDM cold shrink and especially heat shrink. Cold shrink is a much quicker weatherproofing solution than butyl, self fusing tape, and heat shrink, as it is applied in one motion by pulling and removing the inner supporting core spiral.
Why spend do much money on 3M cold shrink tube? Our silicone cold shrink is manufactured with high performance silicone and higher shrink ratios, resulting in a more watertight seal, with equal pressure radially applied around your connector and cable body. When removing silicone cold shrink tube, you're left with a mess like you would be with traditional rolls of butyl or self amalgamating tape. Silicone cold shrink tube really is the future of weatherproofing!
RoHS
IP67
See below for our 3 cold shrink tube options and what they can be used for. If you need any additional information or have any questions, just give us a buzz or shoot us an email! Custom sizes, colors, and configurations can be manufactured upon request!
Why spend do much money on 3M cold shrink tube? Our silicone cold shrink is manufactured with high performance silicone and higher shrink ratios, resulting in a more watertight seal, with equal pressure radially applied around your connector and cable body. When removing silicone cold shrink tube, you're left with a mess like you would be with traditional rolls of butyl or self amalgamating tape. Silicone cold shrink tube really is the future of weatherproofing!
RoHS
IP67
See below for our 3 cold shrink tube options and what they can be used for. If you need any additional information or have any questions, just give us a buzz or shoot us an email! Custom sizes, colors, and configurations can be manufactured upon request!
Part Number | Size Range (mm) | Size Range (in.) | Length (after deployment) | Material/Color | Most Common Connector/Cable Sizes |
---|---|---|---|---|---|

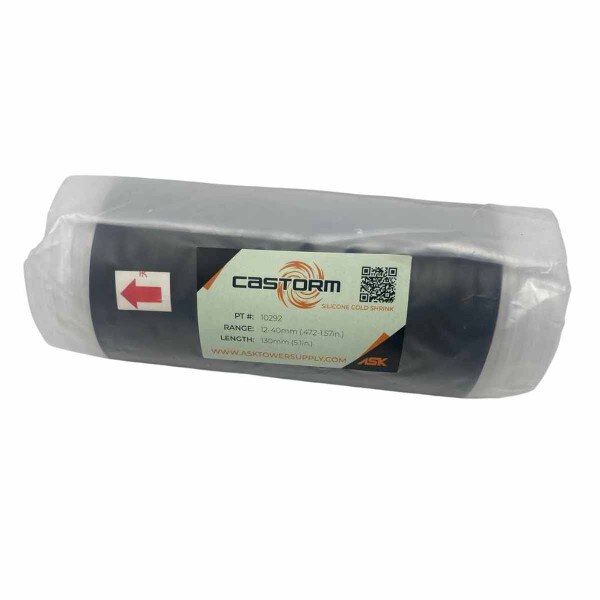

10292 | 12 - 40mm | .472 - 1.57in. | 130mm (5.1in.) | Silicone/Black | Most commonly used on 7/16 DIN or 4.3-10 connectors with 1/2" annular or superflex coax (any brands) |

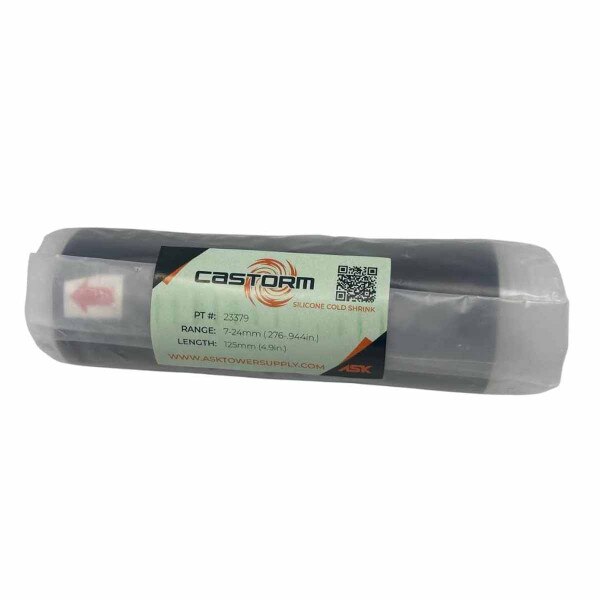

23379 | 7 - 24mm | .276 - .944in. | 125mm (4.9in.) | Silicone/Black | Most commonly used with 4.3-10 and 4.1-9.5 to 1/4" coax. If attempting to use with 1/2" coax, double check connector body fit, especially if using JMA/PPC connectors |

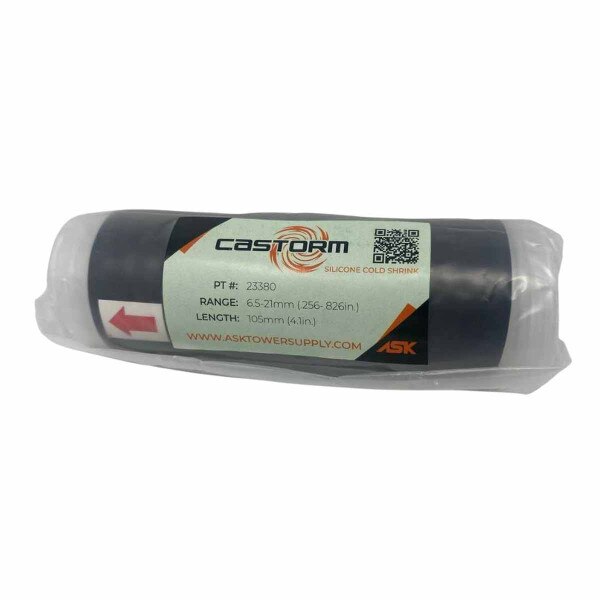

23380 | 6.5 - 21mm | .256 -.826in. | 105mm (4.1in.) | Silicone/Black | Shorter length for Type N and Nex10 connectors to any size coax within range, including 1/4". Double check connector body fit if using 1/2" JMA/PPC connectors |
