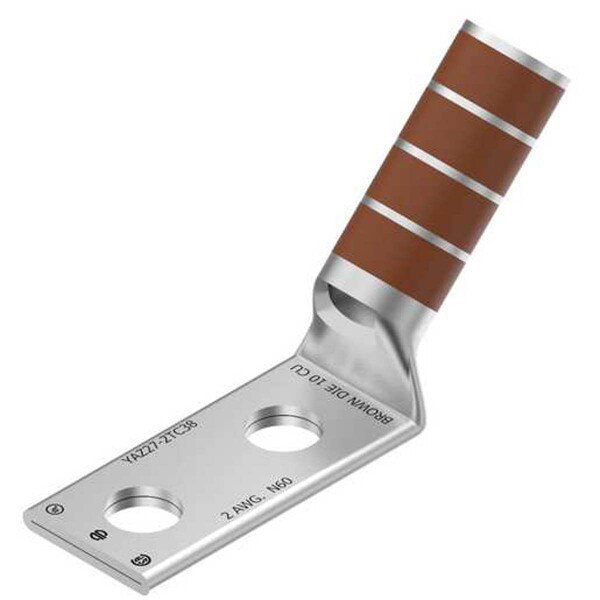

Burndy Lug, #2 Str - 2 hole, 1/4" x 5/8" (W) (45°)

Color Code Brown
Connector Type Terminal
Die Index 10
Feature - Barrel Style Skived
Feature - Barrel Type Long
Material Copper
Physical Attribute - Number of Holes 2
Physical Attribute - Tongue Type Standard
Plated Yes
Plating Type Tin - Electro Plated
Trade Name HYLUG™
Type Long Barrel, Skive, Tin Plated
UPC 781810229255
UPC 12 Digit 7818102292555
Dimensions
Dimension - B Length inch 1.25 in
Dimension - Bolt Hole Size inch 0.27 in
Dimension - Height inch 1.42 in
Dimension - Hole Size inch 0.27 in
Dimension - Hole Size mm 7 mm
Dimension - L Length Overall mm 67 mm
Dimension - Length Overall inch 2.65 in
Dimension - N inch 0.31 in
Dimension - Outside Diameter inch 0.42 in
Dimension - Pad Width inch 0.60 in
Dimension - Strip Length inch 1-5/16
Dimension - Z inch 0.96 in
Physical Attribute - Tongue Angle 45 Degree
Electrical Ratings
Rating - KVA 35 kV
Rating - Minimum Voltage 600
Voltage - Maximum 35000
Conductor Related
Conductor - Copper Str Navy Size 60 (37) Navy
Conductor - Copper Str Navy Size Range 60 (37) Navy
Conductor - Copper Str Size 2 AWG
Conductor - Material Copper
Certifications and Compliance
Certification - CSA Approved Yes
Certification - ETL No
Certification - UL Recognized No
Certification - cULus No
Standards - RoHS Compliance Status CM
UL Listed Yes
