WILLIAM

Detailed description

Pear shape offers a large capacity and wide opening:

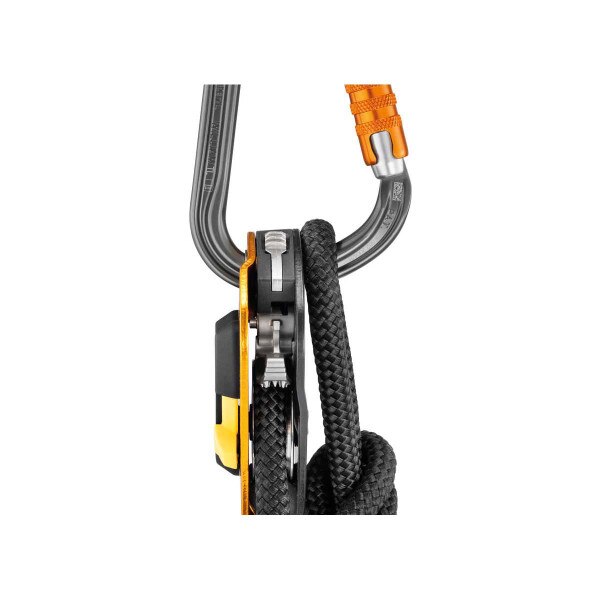

- facilitates connection of multiple items
- allows a Munter hitch to be easily created in case of retreat
Aluminum carabiner is light, reducing the weight of equipment the worker at height needs to carry
Easier handling:
- fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
- Keylock system to avoid any involuntary snagging of the carabiner

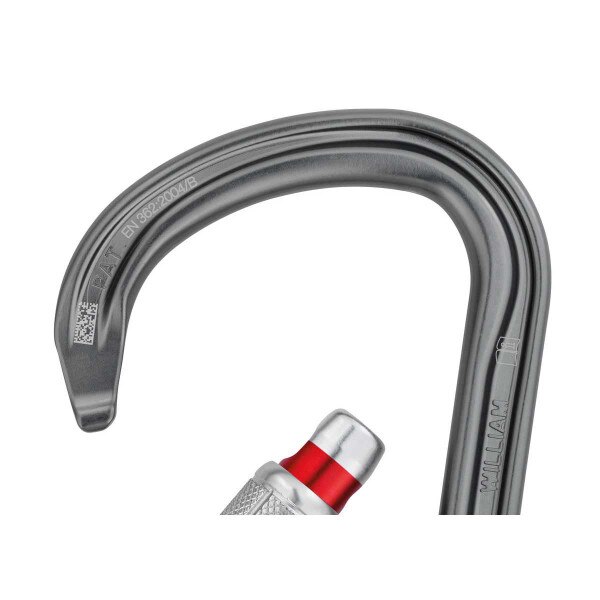

H-shaped cross-section:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion
Available in three different locking systems:

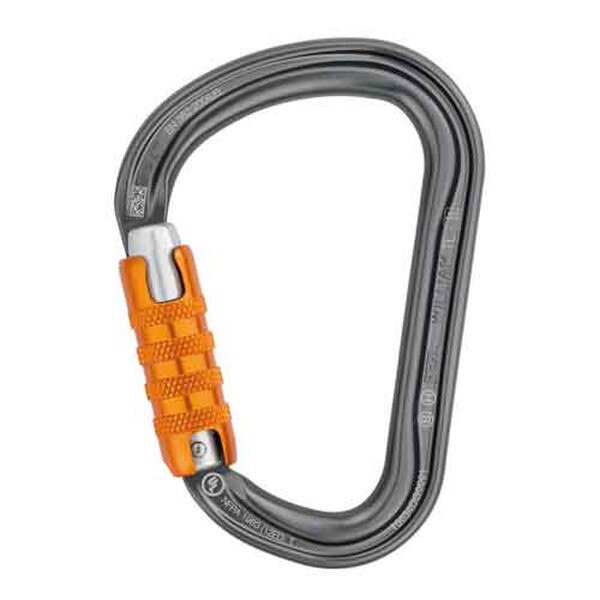

- TRIACT-LOCK: automatic locking with triple-action gate opening

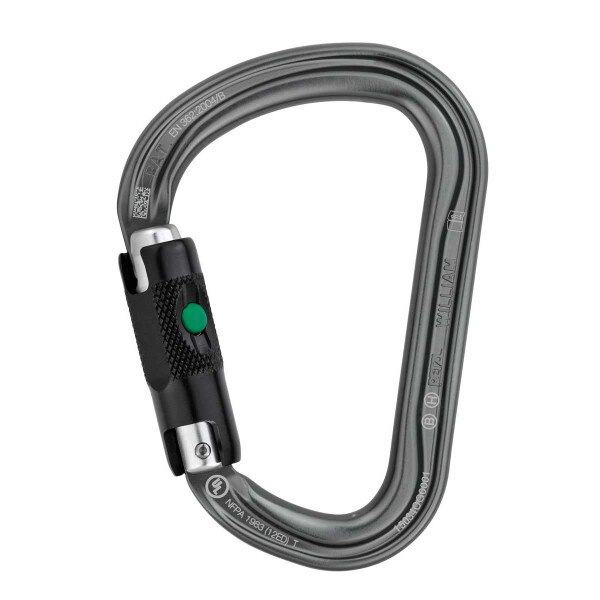

- BALL-LOCK: automatic locking with triple-action gate opening, with lock indicator

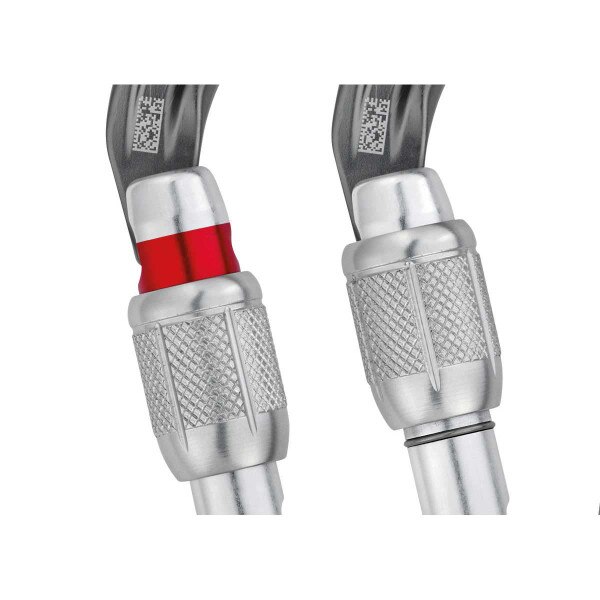

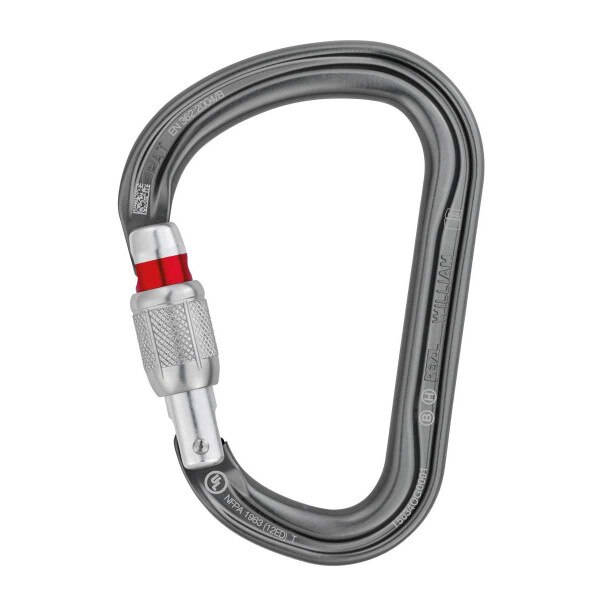

- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

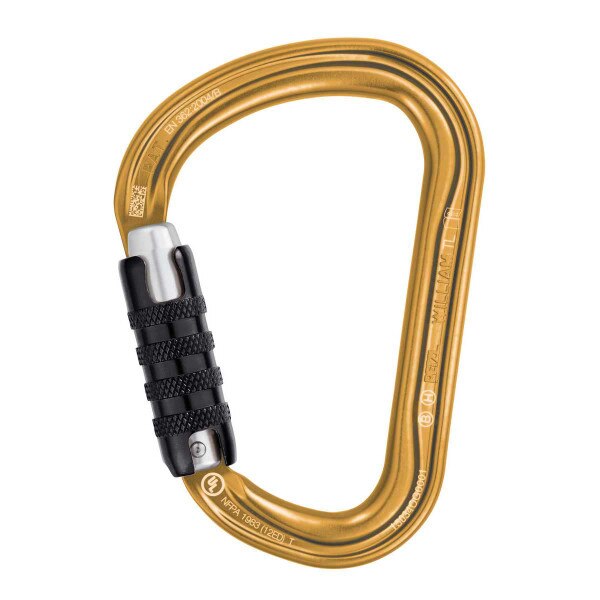

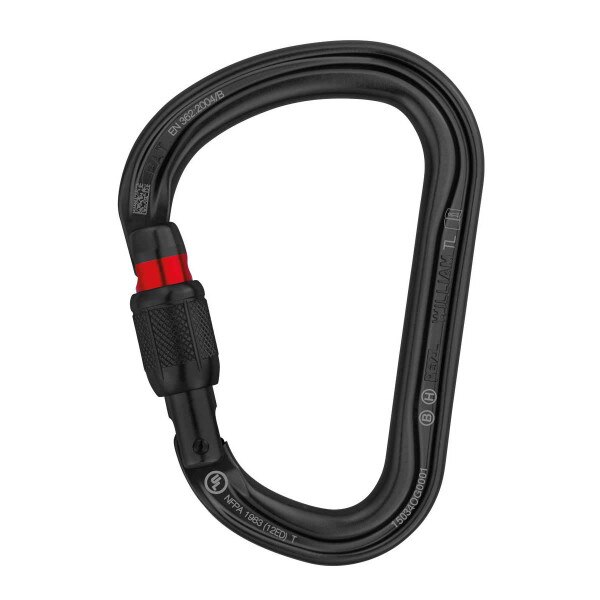

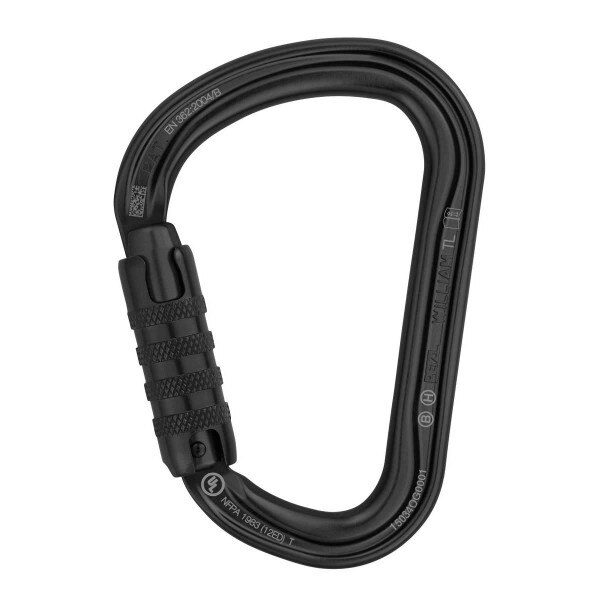

Also available in black (TRIACT-LOCK and SCREW-LOCK versions) and gold (TRIACT-LOCK and BALL-LOCK versions)

References

References	M36A TL	M36A BL	M36A SL	M36A TLN	M36A SLN	M36A TLY
Weight	90 g	90 g	85 g	90 g	85 g	90 g
Locking system	TRIACT-LOCK	BALL-LOCK	SCREW-LOCK	TRIACT-LOCK	SCREW-LOCK	TRIACT-LOCK
Color(s)	gray	gray	gray	black	black	gold
Major axis strength	27 kN	27 kN	27 kN	27 kN	27 kN	27 kN
Minor axis strength	8 kN	8 kN	8 kN	8 kN	8 kN	8 kN
Open gate strength	8 kN	8 kN	8 kN	8 kN	8 kN	8 kN
Gate opening	27 mm	27 mm	28 mm	27 mm	28 mm	27 mm
Guarantee	3 years	3 years	3 years	3 years	3 years	3 years
Packing	1	1	1	1	1	1

WILLIAM, H-frame carabiner, NFPA
