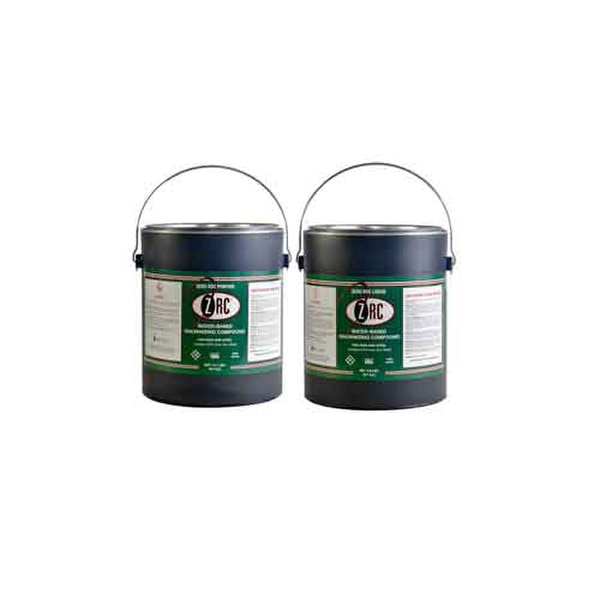

ZRC® Zero VOC - Revolutionary Water Based, Battleship Gray, Flat Finish, Gallon Kit

Combining the best features of organic and inorganic zinc coatings, ZRC® Zero-VOC Galvanizing Compound is water-based and environmentally friendly — and different from other products of its kind with the same quality protection guarantee.

ZRC Zero-VOC Galvanizing Compound


ZRC ZERO VOC solves the problems inherent in traditional inorganic zinc coatings like: near-white sandblasting, difficult spraying, and short pot life. We’ve resolved these issues by creating a unique hybrid featuring the best features of organic and traditional inorganic zinc coatings. ZRC ZERO VOC offers the same true cathodic protection as our original ZRC, without volatile organic content, solvents, or solvent fumes.

Recommended Uses

With its unique formulation, ​​ZRC Zero VOC Cold Galvanizing Compounds are excellent for use in VOC-restricted areas. ZRC Zero VOC may be used without a topcoat in place of hot-dip galvanizing. Also used as a high-performance base coat with a variety of topcoats. It’s specially formulated for:


• Hot-Dip Galvanizing Repair & Regalvanizing - It’s a flexible option for repair of worn hot-dip galvanized materials.
• Weldments Repair - Our original compound can be used to repair weldments.
• Inorganic Zinc Coatings Repair - ZRC is also effective for inorganic zinc coatings repair.
• Galvalume® and Zinc Metallizing - ZRC 221 can be used for Galvalume® and zinc metalizing projects.
• Long-Term Protection - It’s proven to be effective long-term protection for: structural steel, water and waste facilities, power plants, transmission towers and antennae, steel decking and bridges, and numerous OEM uses.


Specifications

• SSPC Paint Specification 20 – Zinc-Rich Coating: Type I – Inorganic– equal to or greater than 93% zinc dust by weight present in the dried film.
• Zinc Dust Content - ASTM D 520 Type III Zinc Dust - .002% maximum lead by weight
• Weight and VOC Notes - Weight per gallon – not less than 25 lbs. VOC Content — ASTM D 3960, 0 g/l (0 lbs per gallon) maximum
• Color and Gloss - Color and Gloss – Matte finish, “battleship grey”

Flexible Application Formats

-Unlike hot-dip galvanizing, ZRC is portable, flexible protection that can be applied in a variety of formats:

• Brush, Roller and Aerosol - Apply as received in the container. For brush application, we recommend only 100% Natural Chinese Bristle brushes. For roller application, we recommend rollers with a 3/8” nap, made of mohair or lambs wool (sheepskin).

• Spray (Low-Pressure Compressor) - ZRC can also be applied as a spray.
  • Typical Equipment Specification:
    • Binks #95 siphon-fed conventional air gun
    • Aircap: 66SK Fluid Tip: 66 SS
    • Atomized Air Pressure: 40 psi (1.1 Kg/cm²)
    • Fluid Pressure: 15 to 20 psi (0.4-0.6 Kg/cm²)
    • Orifice of Tip: 0.080 inches (0.20 cm)
    • Viscosity Reduction: Add water only if absolutely necessary
• Spray (Airless) - Recommended Procedure: Connect hose directly to pump ensuring a hose length of 50 ft. max. Use in-pot agitator or continuous recycling. Use the least pressure possible. Start at 1500 lbs. (105 Kg/cm3) and increase as required for good spraying. Notes:
  • Pump: 30:1 Ratio
  • Hose: 1/2" (1.3 cm)(I.D.) Airless Type
  • Orifice of Tip: 60° - .026 in. (0.07 cm)
  • Type of Tip: Tungsten carbide, reversing
  • Filter Screens: Complete removal is recommended. However, if screens are employed, use no less than 30 mesh
  • Viscosity: No reduction required

Part Number:

• ZRC Zero VOC Cold Galvanizing Compound - 40003 Gallon
