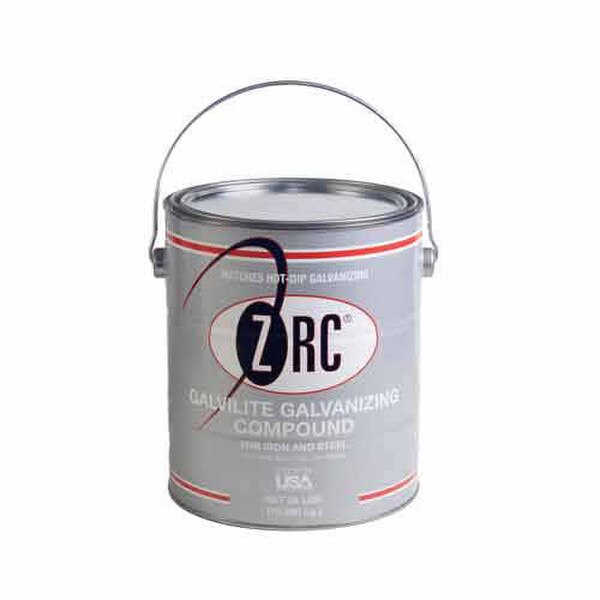

ZRC Galvilite® Galvanizing Repair Compound, Light Gray Shinier Finish, Gallon

SKU: ZRC Galvilite® Galvanizing Repair Compound, Light Gray Shinier Finish, Gallon
https://www.asktowersupply.com/item-brand-images/zrc.jpg
ASK PART #: 25123
UNITS: each
MANUFACTURER: ZRC Worldwide
MANUFACTURER'S PART #: 20013
$269.90
(0) No Reviews yet

1 Available

Select Store to check availability.

In warehouse - can ship immediately!

Current Stock: 1

Designed specifically for field and shop repair of hot-dip galvanization, ZRC Galvilite® exceeds galvanizing repair specifications like ASTM Des. A 780, SSPC-Paint 20, and DOD-P-21035A.



ZRC Galvilite® Galvanizing Repair



ZRC Galvilite Galvanizing Repair is a high-quality cold galvanizing compound based on a trade secret organic binder which affords true galvanic anti-corrosion protection to metals. Galvilite® is designed specifically for field and shop repair of hot-dip galvanizing. It is manufactured with the highest purity ASTM D520 Type III zinc dust. It meets VOC standards in all 50 states, exceeds galvanizing repair specifications, and has multiple application formats.



Recommended Uses
The dried film of Gavilite is 95% metallic zinc. Because of the uniqueness of the formulation, Gavilite is the only coating of its type to be recognized under the Component Program of Underwriter's Laboratories, Inc. Galvilite is widely used without topcoat in place of hot-dip galvanizing. It’s specially formulated for:

  • Hot-Dip Galvanizing Repair & Regalvanizing - It’s a flexible option for repair of worn hot-dip galvanized materials.
  • Galvalume® and Zinc Metallizing - Galvilite can be used for Galvalume® and zinc metalizing projects.
  • Weldments Repair - Our original compound can be used to repair weldments.
  • Inorganic Zinc Coatings Repair - ZRC is also effective for inorganic zinc coatings repair.
  • Long-Term Protection - It’s proven to be effective long-term protection for: structural steel, water and waste facilities, power plants, transmission towers and antennae, steel decking and bridges, and numerous OEM uses.



Specifications

  • SSPC Paint Specification 20 – Zinc-Rich Coating: Type II – Organic; Level 1 – equal to or greater than 95% zinc dust by weight present in the dried film
  • Zinc Dust Content - ASTM D 520 Type III Zinc Dust - .002% maximum lead by weight
  • Weight and VOC Notes - Weight per gallon – not less than 24 lbs. VOC Content — ASTM D 3960, 385 g/l (3.3 lbs per gallon) maximum
  • Color and Gloss - Silver with gloss matching appearance of new hot- dip galvanizing



Flexible Application Formats

-Unlike hot-dip galvanizing, Galvilite is portable, flexible protection that can be applied in a variety of formats. It’s meant to be applied to properly prepared carbon steel, cast iron, hot-dip galvanized, and aluminum surfaces.


  • Brush, Roller and Aerosol - Apply as received in the container. For brush application, we recommend only 100% Natural Chinese Bristle brushes. For roller application, we recommend rollers with a 3/8” nap, made of mohair or lambs wool (sheepskin).
  • Spray (Low-Pressure Compressor)
    • Atomized Air Pressure: 50 Lbs (1.3 kg/cm²)
    • Fluid Pressure: 15 to 20 Lbs (0.4-0.6 kg/cm²)
    • Orifice of Tip: 0.080 inches (0.20 cm)
    • Viscosity Reduction:4:1 Mineral spirits  -OR- 16:1 Xylene
  • Spray (Airless) - Recommended Procedure: Connect hose directly to pump ensuring a hose length of 50 ft. max. Use least pressure possible. Start at 1500 lbs. (680 kg) and increase as required for good spraying.
    • Pump: 30:1 Ratio
    • Hose: 1/2" (1.3 cm)(I.D.) Airless Type
    • Orifice of Tip: 60° - .026 in. (0.07 cm)
    • Type of Tip: Tungsten carbide, reversing
    • Filter Screens: Complete removal is recommended. However, if screens are employed, use no less than 30 mesh
    • Viscosity: No reduction required



Part Numbers

  • 20010 - Galvilite 12oz Aerosol
  • 20011 - Galvilite Half Pint
  • 20012 - Galvilite Quart
  • 20013 - Galvilite Gallon
  • 20014 - Galvilite 3.5 gal Pail
