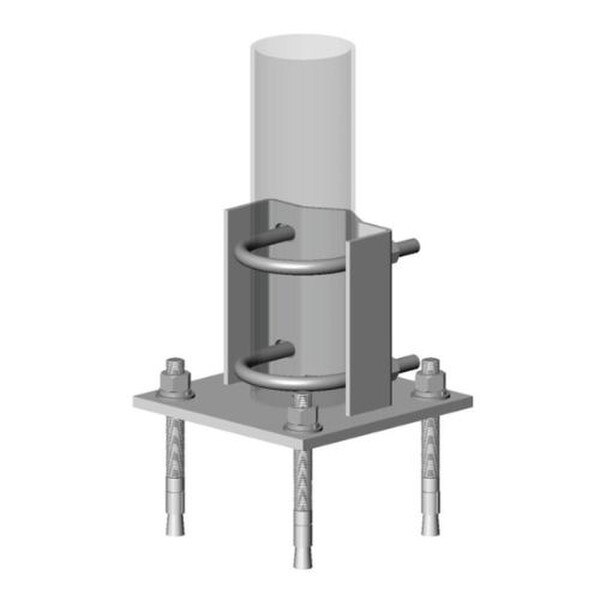

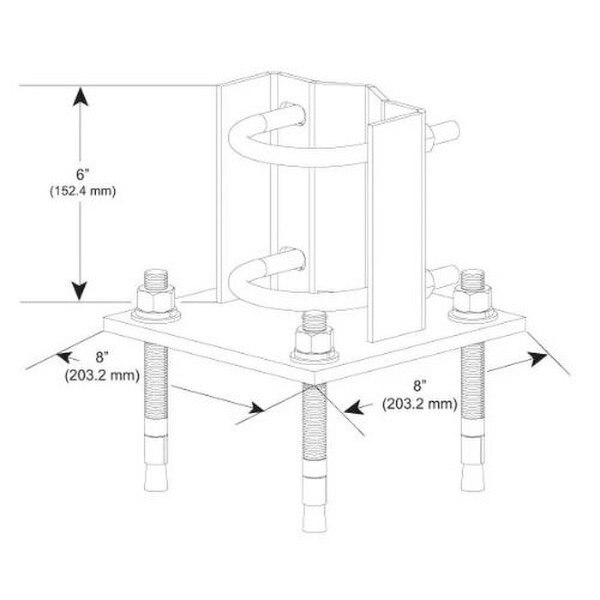

Heavy Duty Bolt-On Base Shoe Post for 3-1/2 in. OD Pipe

Description:

This Heavy Duty Bolt-On Base Shoe Post is a rugged, galvanized mounting solution designed to secure 3-1/2" outside diameter pipe in telecom, tower, and waveguide bridge applications. Constructed from hot-dip galvanized steel, it provides outstanding strength, weather resistance, and long service life in outdoor conditions.

This unit is supplied as a complete hardware kit, including U-bolts and concrete wedge anchors — critical components for a secure, professional-grade mount.

Key Features:

• Equivalent to ANDREW WB-BS (Base Shoe for 3-1/2" OD Pipe)
• Heavy Duty Bolt-On Base Shoe Post for telecom and tower use
• Built from hot-dip galvanized steel for superior durability and corrosion resistance
• Includes all mounting hardware, including U-bolts and concrete wedge anchors
• Net Weight: 19.18 lbs.
• Packaging Quantity: 1
