H-Frame Equipment Rack Kit
H-Frame Equipment Racks deliver a reliable, code-compliant solution for mounting critical communications gear at cell towers, rooftop sites, and remote installations. Built from extra-stout 3-1/2" plain-end hot-dip galvanized pipe (not lighter 2-7/8" OD posts used in some competing racks), these single-sided, 2-post systems provide unmatched strength and flexibility for RRUs, BBUs, cabinets, fiber distribution, and multi-carrier radio deployments.

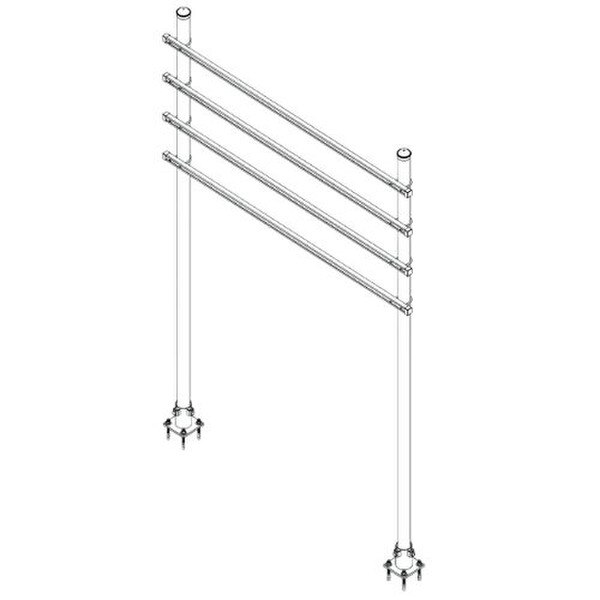

Designed for full customization, these racks are available in multiple widths, heights, and level configurations to fit any site—from compact rooftop small cells to dense urban macro arrays. Choose between direct burial or heavy-duty welded bolt-on base shoes engineered for additional wind load resistance. The bolt-on base option includes 5/8" x 2" heavy-duty galvanized hex bolts to lock the posts securely in place—even against uplift—and factory-supplied 1/2" x 6" concrete anchor bolts with all required hardware for pad or rooftop anchoring. Each base shoe is also designed with a weep hole to drain any moisture buildup inside the pipe.
Each rack is manufactured to order, ensuring compliance with carrier standards and site-specific requirements. Standard features include:
1-5/8" deep slotted galvanized unistrut for universal mounting.
3/8" U-bolts sized specifically to allow a socket to fit inside the deep strut channel, making installation far easier than with 1/2" U-bolts.
Red vinyl safety caps on pipe ends for OSHA compliance and visibility.
Universal mounting patterns compatible with major OEM brackets.
Stainless steel hardware for long-term reliability.
Key Benefits
Heavy-duty 3-1/2" galvanized pipe construction engineered for 20+ year service life
Configurable in widths of 5 ft or 10 ft and heights of 8 ft, 10 ft 6 in, or 13 ft
Multiple equipment levels (2–5) to support colocation and future expansion
Optional heavy-duty bolt-on base shoes with included anchors and hardware
Compatible with OEM hardware from Ericsson, Nokia, Samsung, CommScope, and more
Designed to meet TIA-222 structural standards and withstand 90+ mph wind zones
Applications
Cell tower and rooftop equipment mounting
Remote radio head (RRH/RRU) and baseband unit (BBU) installations
Macro, small cell, and C-RAN deployments
Microwave backhaul, fronthaul, and DAS nodes
Multi-band 4G/5G radio systems, CBRS, private LTE, IoT, and M2M networks
Optional Customization
Ice shield protection for heavy ice zones
Custom safety cap colors for site identification or carrier branding
Extended height or seismic reinforcement for unique deployments
Technical Specifications
Construction: 3-1/2" hot-dip galvanized pipe per ASTM A123
Design: Single-sided, 2-post system with standard unistrut spacing
Unistrut: 1-5/8" deep slotted galvanized strut
Fasteners: 3/8" U-bolts for easier socket access inside strut; 5/8" x 2" heavy-duty post bolts; 1/2" x 6" concrete anchors included with base shoe
Finish: G90 galvanized coating for corrosion resistance
Compliance: Meets TIA-222 standards; rated for 90+ mph wind zones
