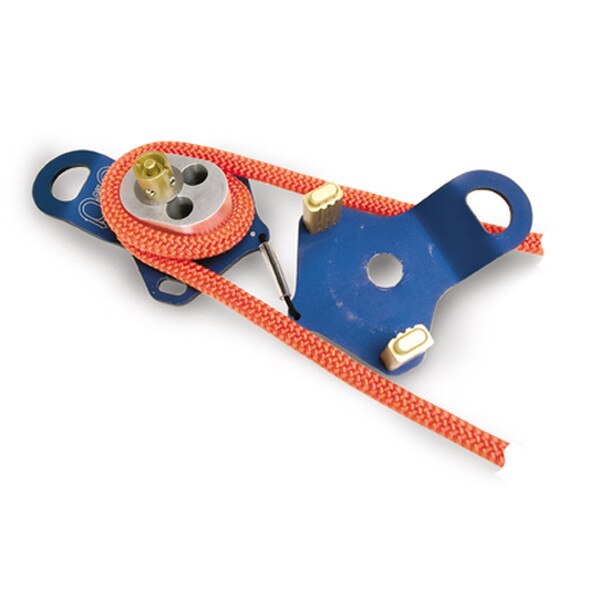

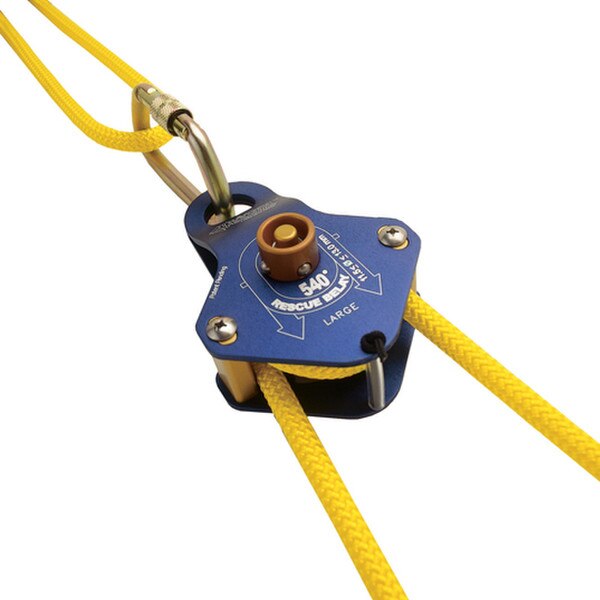

CMC Traverse 540 Rescue Belay, Large

Developed specifically to meet the needs of rescue system belays.

The well-engineered Traverse 540° Belay is a patented, self-locking, easy-to-rig device that meets demanding drop-test criteria: able to hold falling loads quickly while limiting the peak force. The symmetrical design reduces the risk of improper rigging. A built-in release lever discharges the tension on the belay rope, eliminating the need for a release hitch.

* The British Columbia Council of Technical Rescue Belay Competency Drop Test specifies a 1-meter drop onto 3 meters of kernmantle rescue rope with less than 1 meter of additional travel and less than 15 kN peak force. For a General Use rated device, a 280-kg load and a 12.5-mm rope are generally used. For a Technical Use device, a 200-kg load and an 11.1-mm rope are used.


• ITEM: CMC Traverse 540 Rescue Belay, Large
• Product Weight: 624 G (1 Lb 6 Oz)
• Rope Size (Diameter): 11.5 - 13 Mm (1/2 In)
• Color: Blue
• Nfpa Rating: General Use
• 3 Sigma Mbs: 36 Kn (8,093 Lbf)
