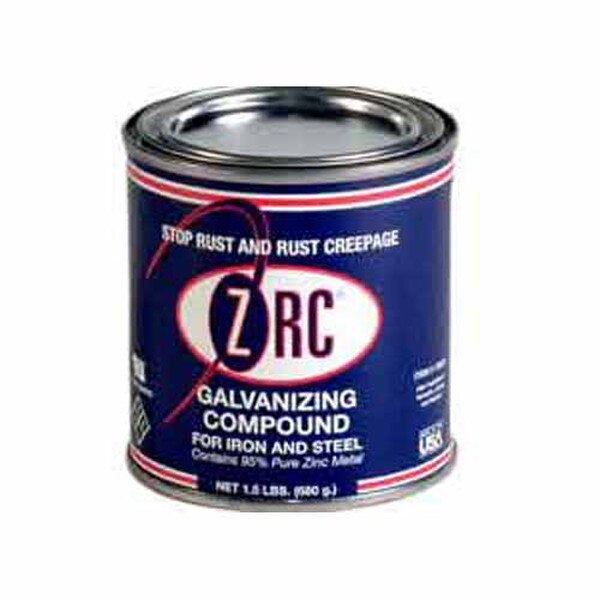

ZRC® Cold Galvanizing Compound, Battleship Gray, Flat Finish, Half Pint

SKU: ZRC® Cold Galvanizing Compound, Battleship Gray, Flat Finish, Half Pint
https://www.asktowersupply.com/item-brand-images/zrc.jpg
ASK PART #: 23414
UNITS: each
MANUFACTURER: ZRC Worldwide
MANUFACTURER'S PART #: 10001
$28.36
(0) No Reviews yet
Out of Stock - Pre-order now!
Select Store to check availability.

Typically ships in 3-7 days (call for details)

ZRC® Cold Galvanizing Compound


Proven protection equivalent to hot-dip galvanizing. With 95% zinc by weight in dried film, ZRC® Cold Galvanizing Compound exceeds ASTM A780 and SSPC Paint 20 standards.



Equivalent to hot-dip galvanizing, ZRC’s Cold Galvanizing Compound is manufactured with the highest purity ASTM D520 Type III zinc dust. Meeting VOC standards in all fifty states, it passes ten-year subtropical exposure testing and exceeds ASTM A780 standards for hot-dip galvanic repair. With flexible application formats, our product is the industry standard in combating corrosion, for true galvanic protection.



Recommended Uses

  • Hot-Dip Galvanizing Repair & Regalvanizing - It’s a more accessible option for repair of worn hot-dip galvanized materials.
  • Weldments Repair - Our original compound can be used to repair weldments.
  • Inorganic Zinc Coatings Repair - ZRC is also effective for inorganic zinc coatings repair.
  • Long-Term Protection - It’s proven to be effective long-term protection for: structural steel, water and waste facilities, power plants, transmission towers and antennae, steel decking and bridges, and numerous OEM uses.


Specifications

  • SSPC Paint Specification 20 – Zinc-Rich Coating: Type II – Organic; Level 1 – equal to or greater than 95% zinc dust by weight present in the dried film
  • Zinc Dust Content - ASTM D 520 Type III Zinc Dust - .002% maximum lead by weight
  • Weight and VOC Notes - Weight per gallon – not less than 24 lbs. VOC Content — ASTM D 3960, 385 g/l (3.3 lbs per gallon) maximum
  • Color and Gloss – Matte finish, “battleship grey”





Flexible Application Formats

-Unlike hot-dip galvanizing, ZRC is portable, flexible protection that can be applied in a variety of formats:

  • Brush, Roller and Aerosol - Apply as received in the container. For brush application, we recommend only 100% Natural Chinese Bristle brushes. For roller application, we recommend rollers with a 3/8” nap, made of mohair or lambs wool (sheepskin).
  • Spray (Low-Pressure Compressor)
    • Atomized Air Pressure: 50 Lbs (1.3 kg/cm²)
    • Fluid Pressure: 15 to 20 Lbs (0.4-0.6 kg/cm²)
    • Orifice of Tip: 0.080 inches (0.20 cm)
    • Viscosity Reduction:4:1 Mineral spirits  -OR- 16:1 Xylene
  • Spray (Airless) - Recommended Procedure: Connect hose directly to pump ensuring a hose length of 50 ft. max. Use least pressure possible. Start at 1500 lbs. (680 kg) and increase as required for good spraying.
    • Pump: 30:1 Ratio
    • Hose: 1/2" (1.3 cm)(I.D.) Airless Type
    • Orifice of Tip: 60° - .026 in. (0.07 cm)
    • Type of Tip: Tungsten carbide, reversing
    • Filter Screens: Complete removal is recommended. However, if screens are employed, use no less than 30 mesh
    • Viscosity: No reduction required



Part Numbers:

  • 10000 - ZRC Cold Galvanizing Compound Aerosol 12oz.
  • 10001 - ZRC Cold Galvanizing Compound Half Pint
  • 10002 - ZRC Cold Galvanizing Compound Quart
  • 10003 - ZRC Cold Galvanizing Compound Gallon
  • 10004 - ZRC Cold Galvanizing Compound 3.5 gal Pail
The ZRC Galvilite Half Pint Can has a high zinc content of "ultra pure" zinc dust and proprietary, non-encapsulating binder. ZRC's unmatched, unsurpassed, industry leading and unique formula is a true galvanic anti-corrosion film that protects steel. The proof of this cold galvanizing compound is on the steel and in the photos. ZRC Galvilite's performance leads the others, time and time again.
