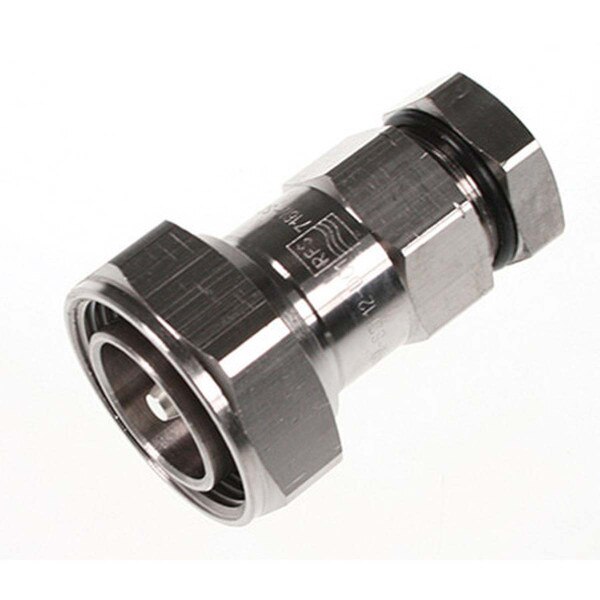

RFS OMNI FIT 7/16 DIN Male Coax Connector for 1/2" Superflex

SKU: 11860 Coax Connector, 1/2" Superflex RFS SCF12, Omni Fit 7/+
ASK PART #: 11860
UNITS: each
MANUFACTURER: Radio Frequency Systems, Inc.
MANUFACTURER'S PART #: 716M-SCF12-D01
$24.94
(0) No Reviews yet

1 Available

Select Store to check availability.

In warehouse - can ship immediately!

Current Stock: 1

Details

OMNI FIT high performance connectors are designed for use with both CELLFLEX® (copper) and
CELLFLEX® Lite (aluminium) cables. They are designed specifically to provide the highest quality connectorcable interface while simplifying and speeding up connector attachment.
All RFS connectors are fully tested for mechanical and electrical compliance to industry specifications The 7-16 connector is the most rugged RF connection meeting all requirements even under the most severe environmental conditions. Sealing against outer conductor and jacket by means of threaded gasket and 360° compression fit. Multifunctional, self-lubricating HighTech polymer assembly locks on cable corrugation, avoids electrochemical potential differences and compression-fits to the jacket. FEATURES / BENEFITS Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction Two-piece design i.e. visual inspection of interlocking leads to improved installation security OMNI FIT concept i.e. streamlined order management and reduced stock level Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during operation Unique NiTin plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances Multi-thread (Tristart) design i.e. simplified and accelerated tightening process RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis
