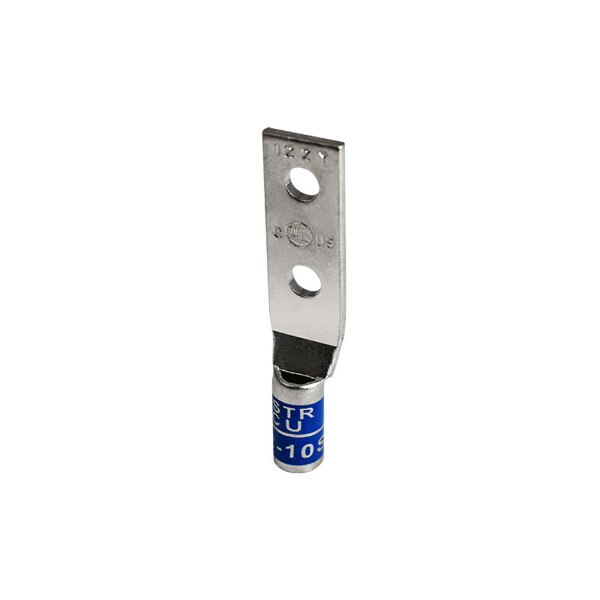

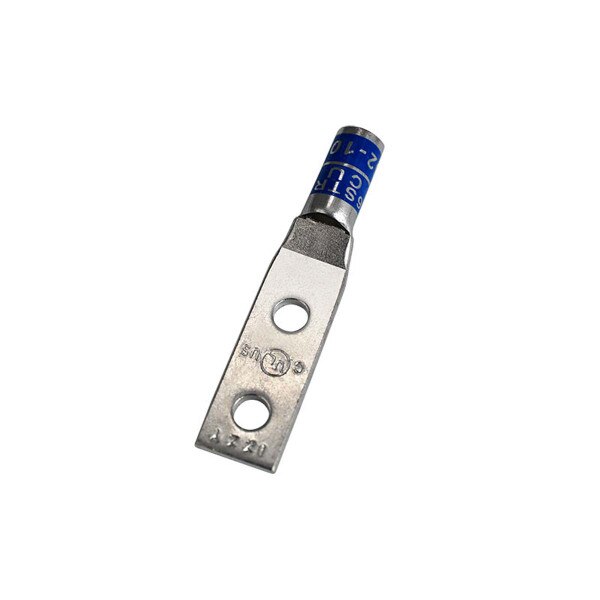

IZZY Lug, #6 Str - 2 hole, #10 x 5/8" (W) Short Barrel
Details
Description
#6 Stranded, 2-Hole, #10 Holes, 5/8? Spacing, Short Barrel Copper Compression Lug w/ Inspection Window.
Quick Reference
Wire Size: 6 AWG
Wire Type: Stranded Copper
Wire Strip Length: 9/16?
# of Holes: 2
Hole Size: #10
Hole Spacing: 5/8?
Manufactured with High Conductivity Seamless Copper Tube
Electro-Tinned Plated
UL Listed for Applications up to 35kv
90 ° C UL Temperature Rating
CSA Certified
#6 Stranded, 2-Hole, #10 Holes, 5/8? Spacing, Short Barrel Copper Compression Lug w/ Inspection Window.
Quick Reference
Wire Size: 6 AWG
Wire Type: Stranded Copper
Wire Strip Length: 9/16?
# of Holes: 2
Hole Size: #10
Hole Spacing: 5/8?
Manufactured with High Conductivity Seamless Copper Tube
Electro-Tinned Plated
UL Listed for Applications up to 35kv
90 ° C UL Temperature Rating
CSA Certified
