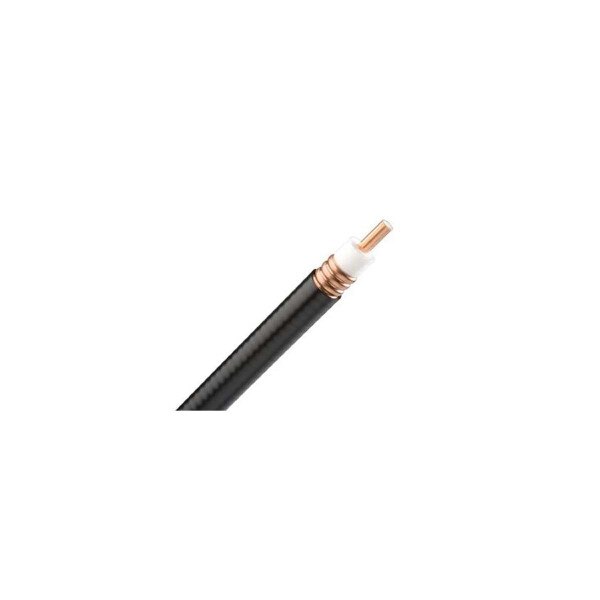

Coax Cable, 7/8" HELIAX® Andrew Virtual Air™, corrugated copper, black PE jacket, AVA5-50
Details
AVA5-50, HELIAX® Andrew Virtual Air™ Coaxial Cable, corrugated copper, 7/8 in, black PE jacket (Halogen free jacketing non-fire-retardant)
Product Classification
Product Type Coaxial wireless cable
Product Brand HELIAX®
Product Series AVA5-50
Ordering Note CommScope® non-standard product | Not available in the United States or Canada
General Specifications
Flexibility Standard
Jacket Color Black
Dimensions
Diameter Over Dielectric 24.13 mm | 0.95 in
Diameter Over Jacket 27.991 mm | 1.102 in
Inner Conductor OD 9.4488 mm | 0.372 in
Outer Conductor OD 25.4 mm | 1 in
Nominal Size 7/8 in
Electrical Specifications
Cable Impedance 50 ohm ±1 ohm
Capacitance 73 pF/m | 22.25 pF/ft
dc Resistance, Inner Conductor 2.888 ohms/km | 0.88 ohms/kft
dc Resistance, Outer Conductor 1.313 ohms/km | 0.4 ohms/kft
dc Test Voltage 6000 V
Inductance 0.184 µH/m | 0.056 µH/ft
Insulation Resistance 100000 MOhms-km
Jacket Spark Test Voltage (rms) 8000 V
Operating Frequency Band 1 – 5000 MHz
Peak Power 91 kW
Velocity 90 %
Product Classification
Product Type Coaxial wireless cable
Product Brand HELIAX®
Product Series AVA5-50
Ordering Note CommScope® non-standard product | Not available in the United States or Canada
General Specifications
Flexibility Standard
Jacket Color Black
Dimensions
Diameter Over Dielectric 24.13 mm | 0.95 in
Diameter Over Jacket 27.991 mm | 1.102 in
Inner Conductor OD 9.4488 mm | 0.372 in
Outer Conductor OD 25.4 mm | 1 in
Nominal Size 7/8 in
Electrical Specifications
Cable Impedance 50 ohm ±1 ohm
Capacitance 73 pF/m | 22.25 pF/ft
dc Resistance, Inner Conductor 2.888 ohms/km | 0.88 ohms/kft
dc Resistance, Outer Conductor 1.313 ohms/km | 0.4 ohms/kft
dc Test Voltage 6000 V
Inductance 0.184 µH/m | 0.056 µH/ft
Insulation Resistance 100000 MOhms-km
Jacket Spark Test Voltage (rms) 8000 V
Operating Frequency Band 1 – 5000 MHz
Peak Power 91 kW
Velocity 90 %
