AB Chance Capstan Hoist w/Foot Pedal

SKU: 11547 AB Chance Capstan Hoist w/Foot Pedal
ASK PART #: 11547
UNITS: each
MANUFACTURER: Hubbell Power Systems
(0) No Reviews yet

1 Available

Select Store to check availability.

In warehouse - can ship immediately!

Current Stock: [[quantityavailable]]

Ready2Ship (in warehouse, ships immediately)

Quantity Available at ASK : 1

Quantity Available at Manufacturer : Unknown, call or email ASK for details

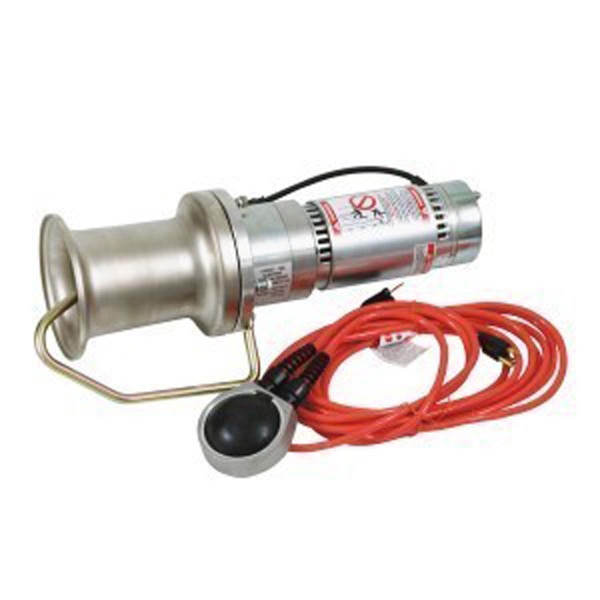

AB Chance 1000 lb Capstan Hoist with Chain Bracket

AB Chance Capstan Cathead Hoists deliver high torque rope-pulling muscle with constant control. The C3081170 AB Chance Capstan 120 Volt, AC Powered Cathead Hoist features include improved design and a multiple-planetary drive/backstop-clutch assembled on the center shaft of a steel gear case with full-length internal teeth. This capstan winch design handles more rugged jobs, extends service life and reduces maintenance. Lightweight yet powerful, these portable hoists move many heavyweight tasks and can get into remote or difficult-access sites. This kit includes the all-purpose AB Chance Chain Bracket (C3081335) that includes two chain clamps for poles, pipes, angles, and beams.

Examples: tower erection, raising antennas, hoisting, setting utility poles, pulling wheeled equipment over obstacles, raising transformers (even over fences in back lots), hoisting heavy insulators, stringing and tensioning conductors, pulling cable (indoors and underground), and cell tower construction. Capstan operator effort remains low for typical loads simply by adding wraps on the capstan drum. So little effort is required, any crew member can run the cathead hoist. Control is so accurate, rope and loads can be moved by fractions of an inch. The unit features a unique rope retaining device which prevents the rope from leaving the drum.

Four 3/8" mounting bolts are furnished with each unit. The mounting flange provides eight 3/8" tapped holes on 5-5/8" bolt circle.

Kit Includes:

AB Chance 1000 lb Capstan Hoist (C3081170)
AB Chance Chain Bracket (C3081335)

Catalog No.: C3081170
Weight: 49 lbs.
Electric Drive: 115-Volt AC
Rope Speed: 40 feet per minute
Source: 14 amperes motor current
Capacity: 1000-lb. load rating
Includes foot control
Also see our truck-ready, swivel-mount kit
