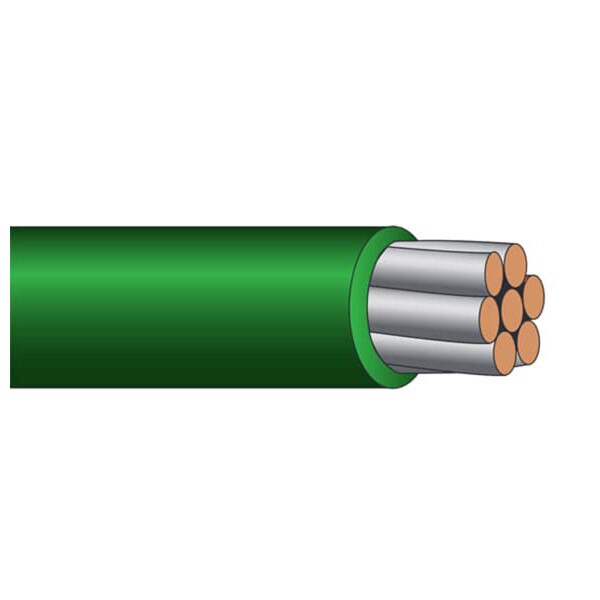

#2 Stranded - Tinned - THW-2 "SUN RES" - Green
Details
THW-2 Sun Resistant Indoor/Outdoor Ground Wire is a single tinned copper conductor, stranded, insulated with moisture and flame retardant, sunlight resistant green PVC. It is suitable for use in conduit or other recognized raceways for services, feeders and branch circuit wiring. Applications include general purpose grounding for power and distribution circuits in residential, industrial and commercial buildings.
Product Standards:
– 90°C Grounding Spec.
– ASTM Standards: B-3 (soft or annealed); B-8 (concentric lay stranded).
– C(UL)US TW75: CSA/UL Listed.
– ICEA S-95-658/NEMA WC-70.
– Federal Spec. A-A-59544.
– Flame Rated: VW-1/FT1.
– Temperature Rated at 90°C Wet/Dry.
– Sunlight Resistant.
– Oil Resistant I.
– RoHS Compliant.
Product Specifications:
– Type: THW-2 600 Volt Tinned Copper.
– Color: Green.
– Conductor Size: #2 AWG.
– Conductor Type: Stranded.
– Insulation Thickness: 60 mils.
– Nominal Diameter Overall: 0.30?.
– Ampacity* 75°C Wet/Dry: 105 (*Based on ambient temperature of 30°C per NEC Table 310-17).
