PIXA® 3R, 90 lumens, black/yellow

SKU: 10829 PIXA® 3R, 90 lumens, rechargeable, constant lighting, multi- beam, wide range, movement & long distance, black/yellow
ASK PART #: 10829
UNITS: each
(0) No Reviews yet
Out of Stock - Pre-order now!
Select Store to check availability.

Typically ships in 3-7 days (call for details)


Rechargeable headlamp for use in ATEX explosive environments, suitable for proximity lighting, movement and long-range vision. 90 lumens


The PIXA 3R headlamp is a rugged, rechargeable headlamp suitable for frequent use by professionals. The multi-beam adapts to all situations: close-range work, movement, and long-range vision. CONSTANT LIGHTING technology: brightness does not gradually decrease as the batteries are drained. It meets ATEX zone 2/22 (II 3 GD Ex ic IIB T4 Gc IIIC T135° C Dc) certification requirements for work in explosive environments.



  • Headlamp keeps hands free for work and can be:
    - worn on the head with the headband
    - attached to the helmet with a mounting plate (included)
    - placed on the ground
  • For frequent use, with integrated rechargeable Lithium-Ion polymer battery and quick charging dock (3 hours)
  • CONSTANT LIGHTING technology ensures brightness that does not gradually decrease as the battery drains
  • Several lighting modes adapt to each situation:
    - a mode adapted for close-range work: uniform flood beam
    - a mode adapted for movement: mixed beam with focused component allows user to move around comfortably
    - a mode adapted for long-range vision: focused beam
  • Burn time parameters may be used to adapt lighting performance to need (by rapidly turning the knob):
    - STANDARD: balance between power and burn time
    - MAX AUTONOMY: burn time prioritized
    - MAX POWER: brightness prioritized
  • Lighting for professionals that is reliable, practical and durable:
    - automatically switches to reserve mode when battery is almost drained (signaled by blinking light and red indicator)
    - rotating knob that is ergonomic, even with gloves
    - storage position helps protect the headlamp lens and prevents inadvertently turning it on

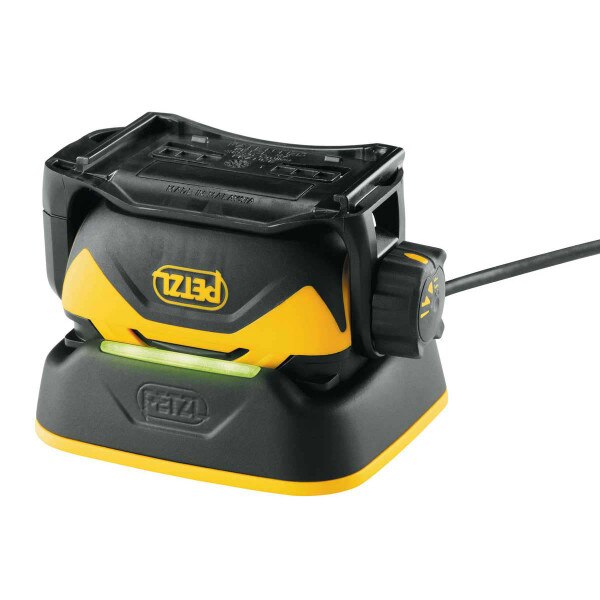

    - charging dock for direct charging of the headlamp itself or only the battery
    - may be used in explosive environments
    - excellent resistance to falls (2 m), impacts, and crushing (80 kg)
    - comfortable and washable elastic headband
    - resistant to chemicals
  • ATEX zone 2/22 (II 3 GD Ex ic IIB T4 Gc IIIC T135° C Dc) certified headlamp


  • Weight: 145 g
  • Beam pattern: flood, mixed or focused
  • Energy: rechargeable Lithium-Ion Polymer battery, 930 mAh
  • Recharge time: 3 h
  • Watertightness: IP67 (waterproof to -1 meter for 30 minutes; no maintenance required after immersion)


ReferencesE78CHR 2
 Certification(s) : CE, II 3 G Ex ic IIB T4 Gc, II 3 D Ex ic IIIC T135° C Dc, room temperature: -30° C to +40° C
Guarantee3 years





Lighting Performance

Lighting technologySettingsLighting modesBeam patternBrightnessDistanceBurn timeReserve mode
CONSTANT LIGHTINGSTANDARDclose-range workflood20 lm15 m11h3010 lm for 1h30
movementmixed55 lm45 m5 h
distance visionfocused90 lm90 m3h30
MAX POWERclose-range workflood25 m3 h
movementmixed55 m
distance visionfocused90 m3h30
MAX AUTONOMYclose-range workflood20 lm15 m11h30
movementmixed30 m
distance visionfocused50 m
