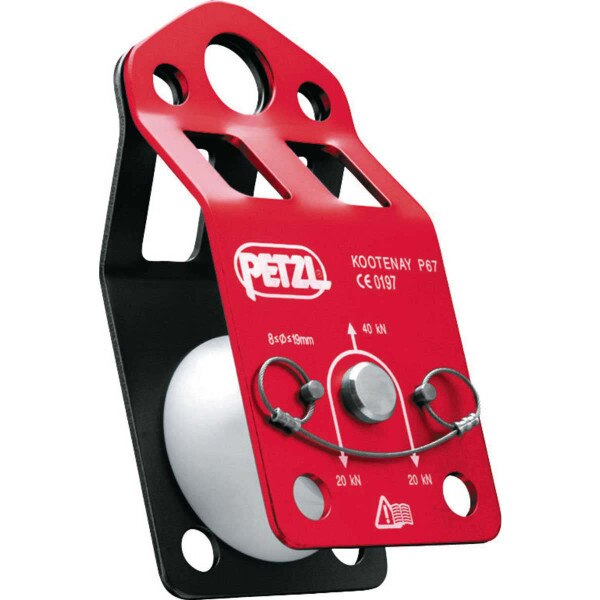

KOOTENAY, knot-passing pulley with locking pins
Detailed description
Description
- High clearance rope channel allows passage of joining knots (long raise or Tyrolean traverse on two ropes)
- Large diameter sheave mounted on sealed ball bearings for excellent efficiency
- Locking pins on the sheave allow pulley to be used as an anchor
Specifications
- Rope compatibility: 8 to 19 mm
- Sheave diameter: 76 mm
- Ball bearings: yes
- Maximum working load: 5 kN x 2 = 10 kN
- Weight: 1390 g
- Height: 26 cm
- Certification(s): CE EN 12278
References
| References | P67 |
|---|---|
| Guarantee | 3 years |
| Packing | 1 |
