COEUR BOLT STAINLESS

SKU: Petzl COEUR BOLT STAINLESS
https://www.asktowersupply.com/item-brand-images/petzl.jpg
ASK PART #: 16454
UNITS: each
MANUFACTURER: Petzl
MANUFACTURER'S PART #: select options
$219.95 to $229.95
(0) No Reviews yet
Out of Stock - Pre-order now!
Select Store to check availability.

Typically ships in 3-7 days (call for details)

Back

Detailed description

Description

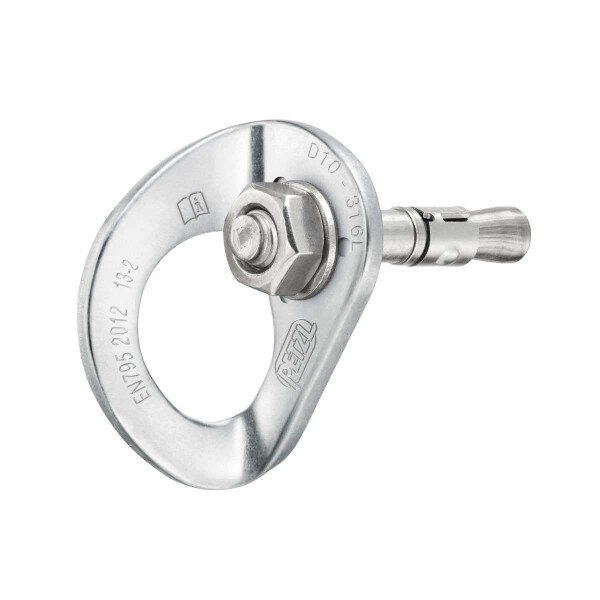

  • 316L stainless steel assembly that offers excellent resistance to corrosion in typical exterior environments, composed of COEUR STAINLESS hanger, a bolt and a nut
  • Easy clipping:

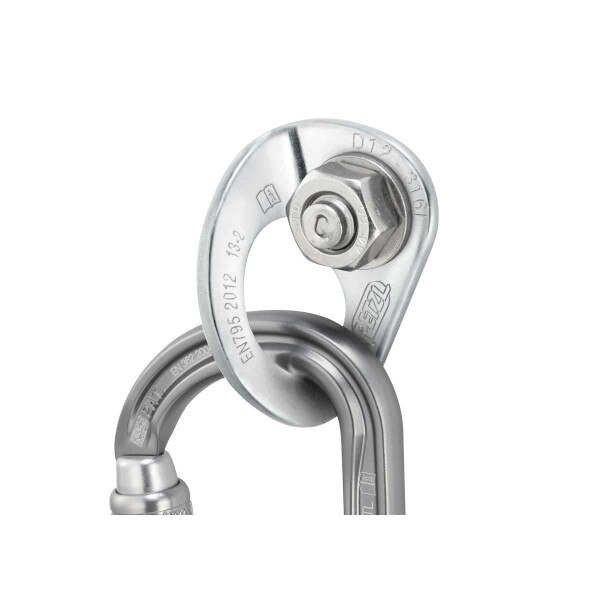

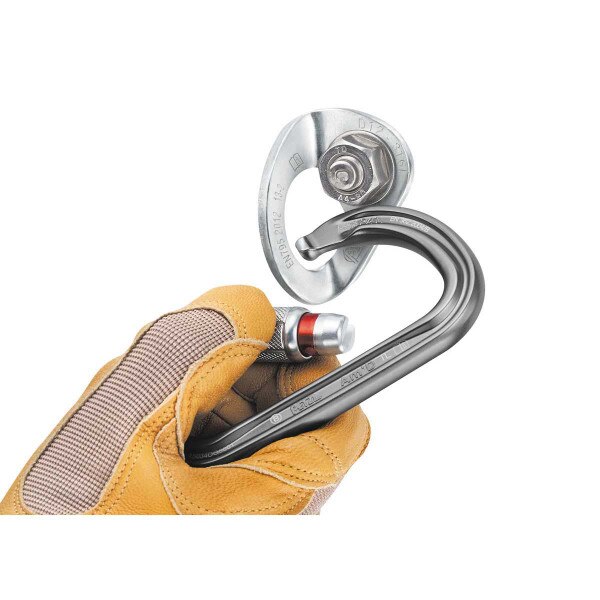

    - the wide, ergonomic connection hole facilitates carabiner clipping

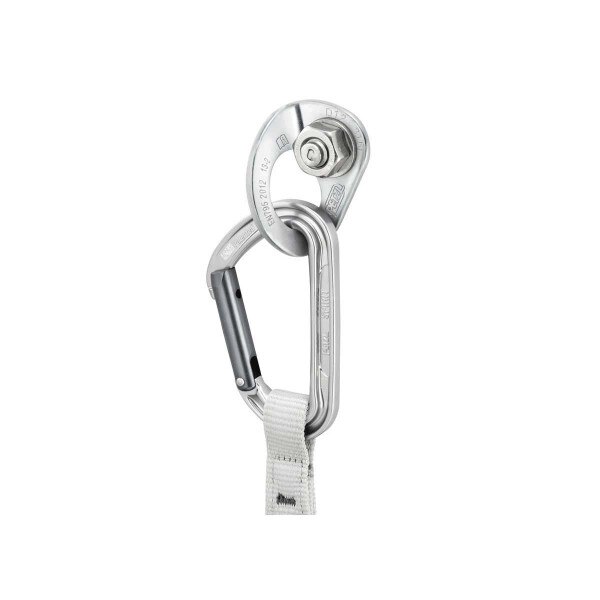

    - the width of the hole allows installation of two carabiners at the same time
  • Prevents wear of connectors: the thickness of the hanger and the rounded edges of the connection hole limit wear of connectors
  • Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
  • Available in two bolt sizes (10 or 12 mm)

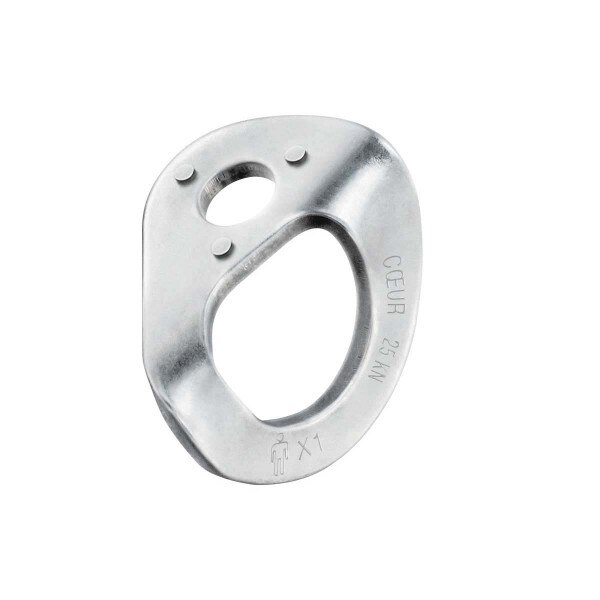

  • COEUR STAINLESS hangers, available separately:
    - for 10 mm diameter bolt (P36AS 10)
    - for 12 mm diameter bolt (P36AS 12)

Specifications

  • Material(s): 316L stainless steel
  • Certification(s): EN 959

References

ReferencesP36BS 10P36BS 12
Diameter10 mm12 mm
Weight110 g135 g
Drilling depth7 cm8,5 cm
Drilling diameter10 mm12 mm
Resistance to cutting on concrete 50 MPa25 kN25 kN
Pull-out strength in concrete 50 MPa15 kN18 kN
Guarantee3 years3 years
Packing1 1
