COEUR BOLT HCR, hanger + bolt, 20 pk, High Corrosion Resistance stainless steel, 12 mm
Details
Detailed description
Description

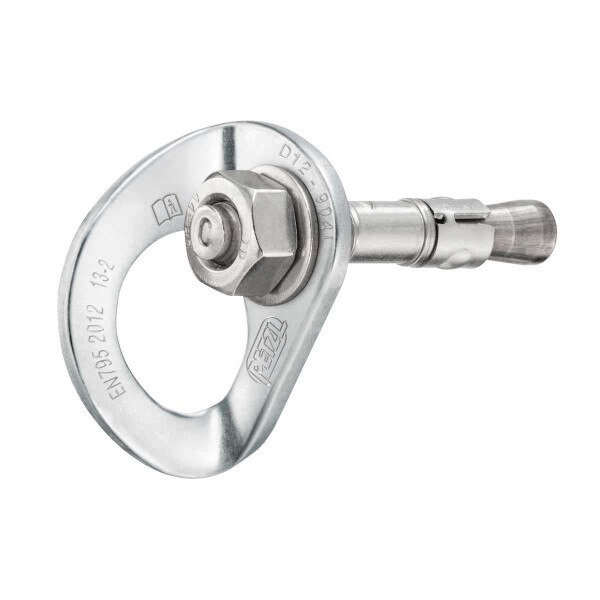

- HCR 904 (High Corrosion Resistance) stainless steel assembly designed for corrosive environments, composed of a COEUR HCR hanger, a bolt and a nut
- Easy clipping:

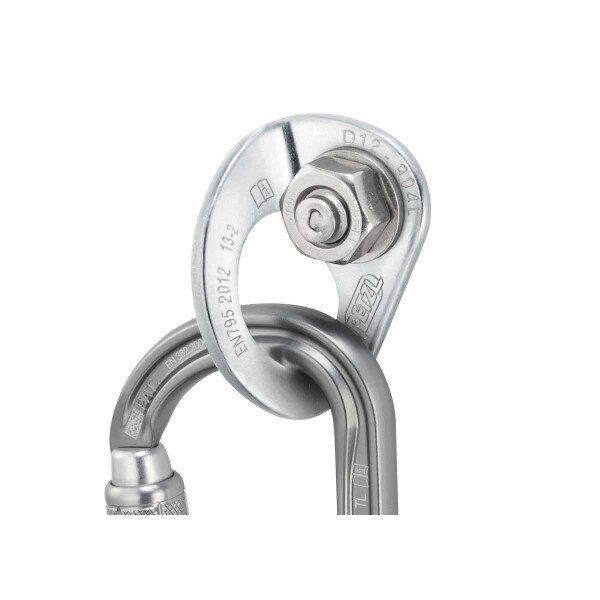

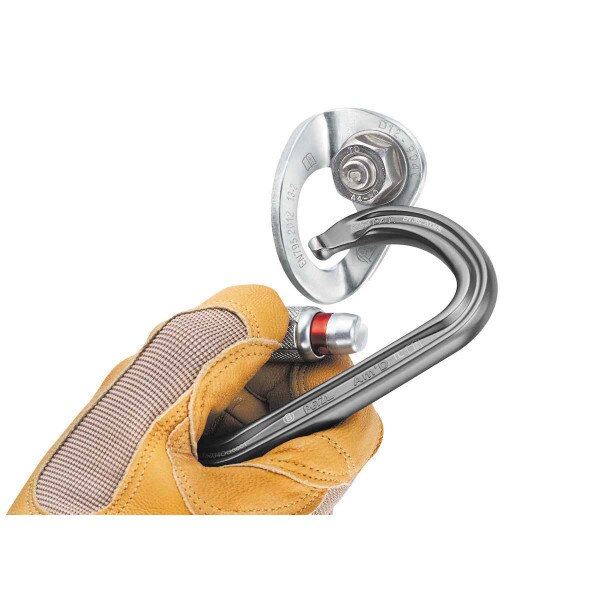

- the wide, ergonomic connection hole facilitates carabiner clipping
- the width of the hole allows installation of two carabiners at the same time - Prevents wear of connectors: the thickness of the hanger and the rounded edges of the connection hole limit wear of connectors
- Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use

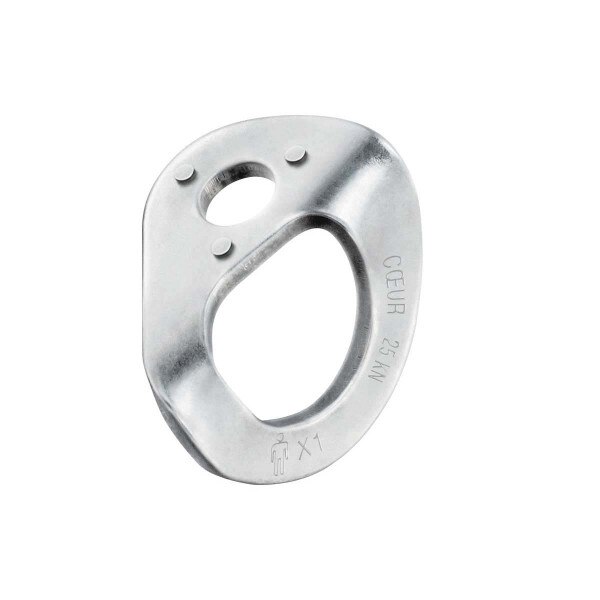

- COEUR HCR hanger for 12 mm diameter bolt (P36AH 12), available separately
Specifications
- Material(s): 904 HCR (High Corrosion Resistance) stainless steel
- Certification(s): EN 959
References
| References | P36BH 12 |
|---|---|
| Diameter | 12 mm |
| Weight | 145 g |
| Drilling depth | 8,5 cm |
| Drilling diameter | 12 mm |
| Resistance to cutting on concrete 50 MPa | 25 kN |
| Pull-out strength in concrete 50 MPa | 18 kN |
| Guarantee | 3 years |
| Packing | 1 |
