Am’D PIN-LOCK 10 pk, H-frame carabiner,10 pack, PIN-LOCK

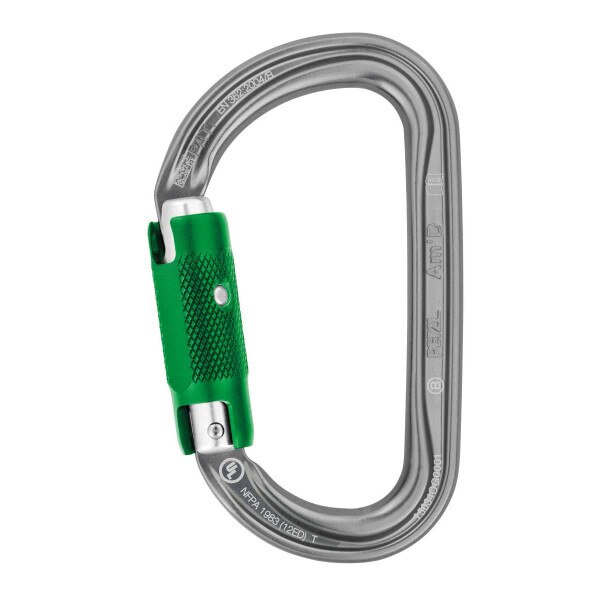

SKU: 11010 Am’D PIN-LOCK 10 pk, H-frame carabiner,10 pack, PIN-LOCK
ASK PART #: 11010
UNITS: each
(0) No Reviews yet
Out of Stock - Pre-order now!
Select Store to check availability.

Typically ships in 3-7 days (call for details)

Delayed (no stock here or at Manufacturer, call or email ASK for exact lead time and details)

Quantity Available at ASK : 0

Quantity Available at Manufacturer : 0


Detailed description


  • Carabiner designed for use with groups:
    - to fasten a harness (in combination with the CAPTIV positioning bar)
    - to connect a trolley to a continuous lifeline
  • Secures the connection of the user:
    - may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device
    - PIN-LOCK locking system is unlocked only with a special tool, limiting the risk of the user opening the carabiner
  • Easy to use by the operator:
    - Keylock system to avoid any involuntary snagging of the carabiner

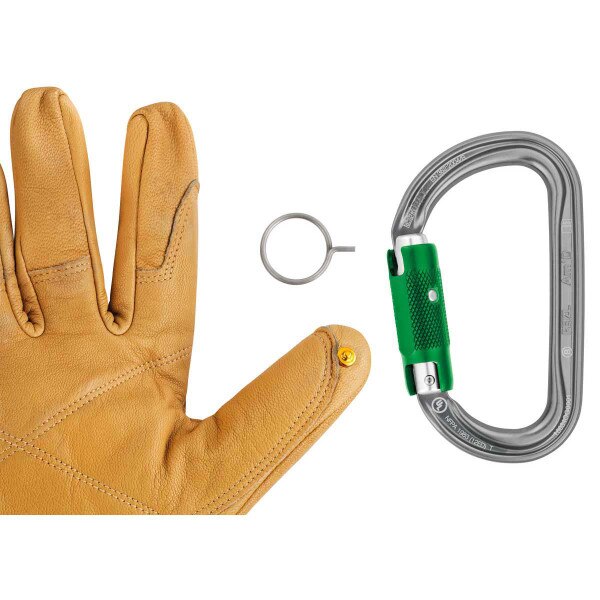

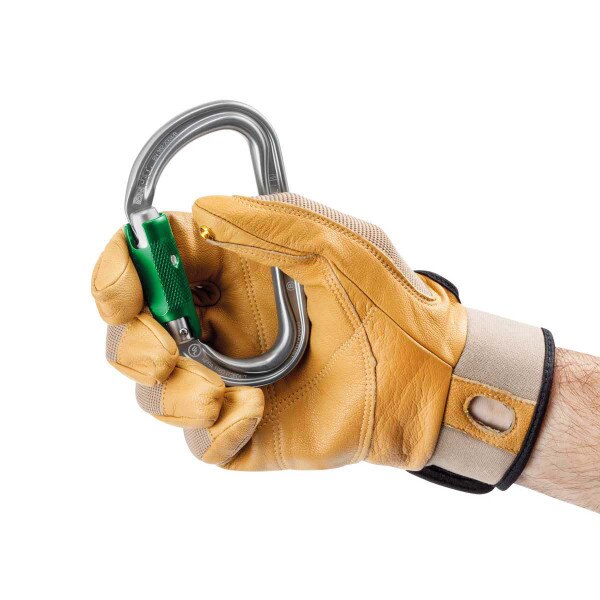

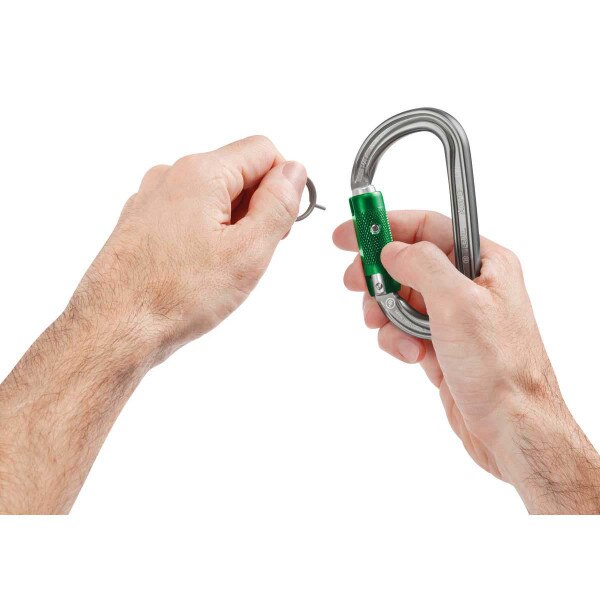

    - two unlocking tools: for repeated manipulations, the unlocking pin can be installed directly on a glove; for immediate and occasional use, the unlocking ring can be kept on a carabiner on the harness
    - H-profile protects markings from abrasion and ensures improved strength-to-weight ratio
  • Sold in ready to assemble packs of 10 with two unlocking tools or individually with the unlocking ring only


  • Material(s): aluminum
  • Certification(s): CE EN 362, CE EN 12275, EAC


ReferencesM34A PLM34AB PL
Locking systemPIN-LOCK PIN-LOCK
sold individually sold by pack of 10
Weight80 g800 g
Color(s)gray gray
Major axis strength27 kN27 kN
Minor axis strength8 kN8 kN
Open gate strength7 kN7 kN
Gate opening25 mm25 mm
Guarantee3 years3 years
Packing1 10
