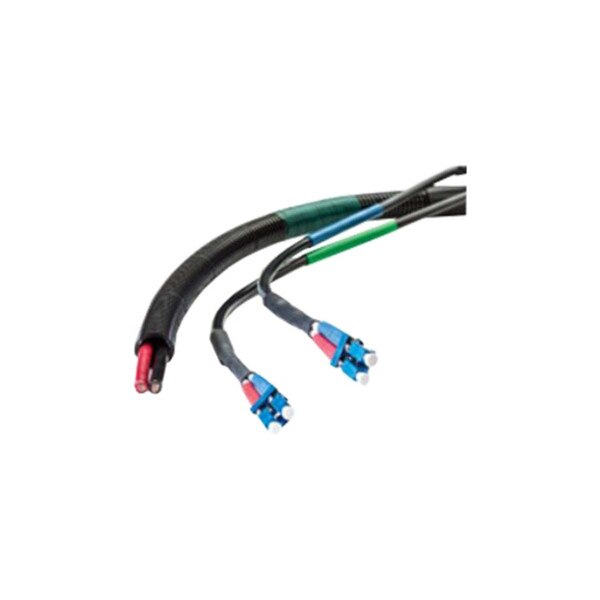

RFS HYBRIFLEX® RRH Hybrid Jumper 2x1 - 30FT
RFS HYBRIFLEX Remote Radio Head (RRH) hybrid
feeder cabling solution combines optical fiber and DC
power for RRHs in a single lightweight aluminum
corrugated cable, making it the world's most innovative
solution for RRH deployments.
It was developed to reduce installation complexity and
costs at Cellular sites. HYBRIFLEX allows mobile
operators deploying an RRH architecture to standardize
the RRH installation process and eliminate the need for
and cost of cable grounding. HYBRIFLEX combines
optical fiber (multi-mode or single-mode) and power in a
single corrugated cable. It eliminates the need for
junction boxes and can connect multiple RRHs with a
single feeder. Standard RFS CELLFLEX® accessories
can be used with HYBRIFLEX cable. Both preconnectorized and on-site options are available.
FEATURES / BENEFITS
Aluminum corrugated armor with outstanding
bending characteristics?Minimizes installation time
and enables mechanical protection and shielding
Outer conductor grounding?eliminates typical
grounding requirements and saves on installation
costs
Lightweight solution and compact design
decreases tower loading
Robust cabling?eliminates need for expensive cable
trays and ducts
Installation of tight bundled fiber optic cable pairs
directly to the RRH?reduces CAPEX and wind load
by eliminating need for interconnection
Optical fiber and power cables housed in single
corrugated cable?saves CAPEX by standardizing
RRH cable installation and reducing installation
requirements
UL-Listed, flame-retardant jacket, UV protected
assembly?allows both indoor and outdoor
applications
feeder cabling solution combines optical fiber and DC
power for RRHs in a single lightweight aluminum
corrugated cable, making it the world's most innovative
solution for RRH deployments.
It was developed to reduce installation complexity and
costs at Cellular sites. HYBRIFLEX allows mobile
operators deploying an RRH architecture to standardize
the RRH installation process and eliminate the need for
and cost of cable grounding. HYBRIFLEX combines
optical fiber (multi-mode or single-mode) and power in a
single corrugated cable. It eliminates the need for
junction boxes and can connect multiple RRHs with a
single feeder. Standard RFS CELLFLEX® accessories
can be used with HYBRIFLEX cable. Both preconnectorized and on-site options are available.
FEATURES / BENEFITS
Aluminum corrugated armor with outstanding
bending characteristics?Minimizes installation time
and enables mechanical protection and shielding
Outer conductor grounding?eliminates typical
grounding requirements and saves on installation
costs
Lightweight solution and compact design
decreases tower loading
Robust cabling?eliminates need for expensive cable
trays and ducts
Installation of tight bundled fiber optic cable pairs
directly to the RRH?reduces CAPEX and wind load
by eliminating need for interconnection
Optical fiber and power cables housed in single
corrugated cable?saves CAPEX by standardizing
RRH cable installation and reducing installation
requirements
UL-Listed, flame-retardant jacket, UV protected
assembly?allows both indoor and outdoor
applications
HYBRIFLEX® RRH Hybrid Jumper 2x1, 8 AWG, Single-Mode Fiber, 30'
