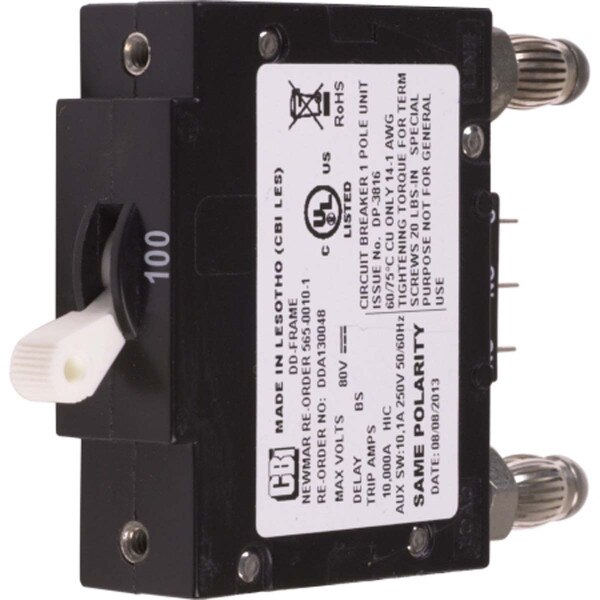

Breaker, Newmar 100A Plug-In Breaker, DST-21
This NewMar 100 amp circuit breaker with open circuit alarm is a distribution panel to control and protect DC system components. Accommodates PFM-200 or DST-20A plug-in type circuit breakers (not included) which are installed from the front for easy system expansion. Auxiliary contacts on each breaker activate summary alarm contacts providing remote indication of tripped breaker. A special "mid-trip" function distinguishes between an over-current tripped breaker and one that is intentionally shut off.
Key Features
Allows the operator to turn off individual loads without setting off the alarm
Wiring is made at easy access, rear panel terminals
400 amp bus(es) enable simultaneous use of the panel for two different voltages
Key Features
Allows the operator to turn off individual loads without setting off the alarm
Wiring is made at easy access, rear panel terminals
400 amp bus(es) enable simultaneous use of the panel for two different voltages
