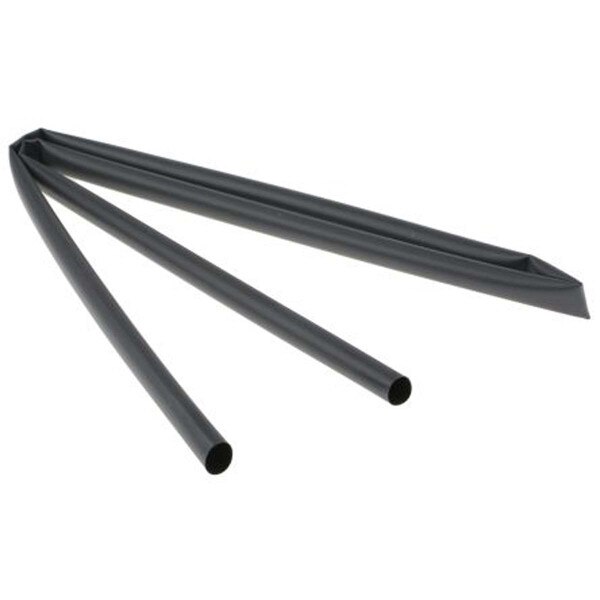

Black Heat Shrink, 3/8" x 48", 3:1 Ratio, Adhesive Lined
3:1 Shrink Ratio with melt adhesive inner lining (shrinks to 1/3 its original diameter)
Up to 15% longitudinal shrinkage
Meets requirements of AMS-DTL-23053/4 (formerly MIL-I-23053/4), Class 3
UL224 VW-1 Certified (Jacket only select colors. Inquire with us for file information)
CSA OFT approved
Maximum use temperature 135°C
Shrink Temperature of 90°C and operating temperature of -55°C to + 110°C
Crosses to:Sumitomo W3B2, Raychem ATUM, Alpha FIT-321, 3M EPS-300, CanusaCPA-100 ,LG GSHS-3635W
Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Color Coding, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation.
Up to 15% longitudinal shrinkage
Meets requirements of AMS-DTL-23053/4 (formerly MIL-I-23053/4), Class 3
UL224 VW-1 Certified (Jacket only select colors. Inquire with us for file information)
CSA OFT approved
Maximum use temperature 135°C
Shrink Temperature of 90°C and operating temperature of -55°C to + 110°C
Crosses to:Sumitomo W3B2, Raychem ATUM, Alpha FIT-321, 3M EPS-300, CanusaCPA-100 ,LG GSHS-3635W
Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Color Coding, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation.
Black Heat Shrink, 3/8" x 48", 3:1 Ratio, Adhesive Lined
