Am’D PIN-LOCK, H-frame carabiner, PIN-LOCK
Details
Detailed description
Description
- Carabiner designed for use with groups:
- to fasten a harness (in combination with the CAPTIV positioning bar)
- to connect a trolley to a continuous lifeline - Secures the connection of the user:
- may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device
- PIN-LOCK locking system is unlocked only with a special tool, limiting the risk of the user opening the carabiner - Easy to use by the operator:
- Keylock system to avoid any involuntary snagging of the carabiner

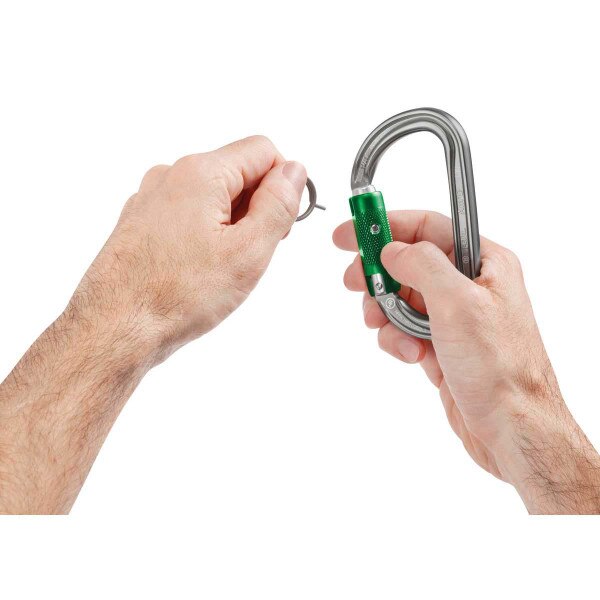

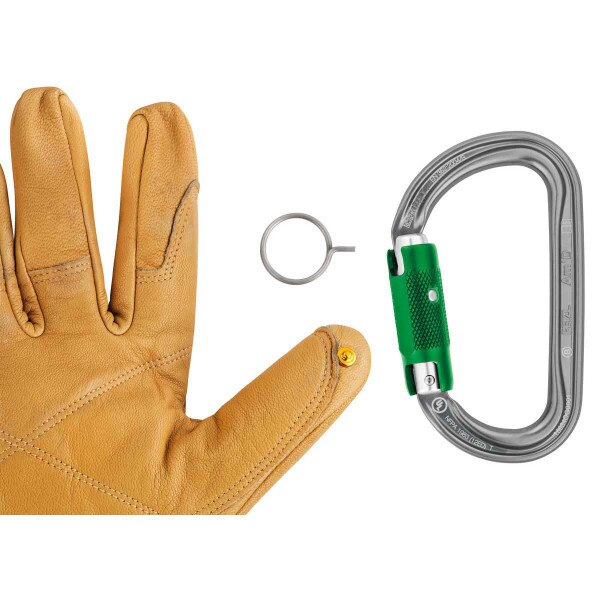

- two unlocking tools: for repeated manipulations, the unlocking pin can be installed directly on a glove; for immediate and occasional use, the unlocking ring can be kept on a carabiner on the harness
- H-profile protects markings from abrasion and ensures improved strength-to-weight ratio - Sold in ready to assemble packs of 10 with two unlocking tools or individually with the unlocking ring only
Specifications
- Material(s): aluminum
- Certification(s): CE EN 362, CE EN 12275, EAC
References
| References | M34A PL | M34AB PL |
|---|---|---|
| Locking system | PIN-LOCK | PIN-LOCK |
| sold individually | sold by pack of 10 | |
| Weight | 80 g | 800 g |
| Color(s) | gray | gray |
| Major axis strength | 27 kN | 27 kN |
| Minor axis strength | 8 kN | 8 kN |
| Open gate strength | 7 kN | 7 kN |
| Gate opening | 25 mm | 25 mm |
| Guarantee | 3 years | 3 years |
| Packing | 1 | 10 |
