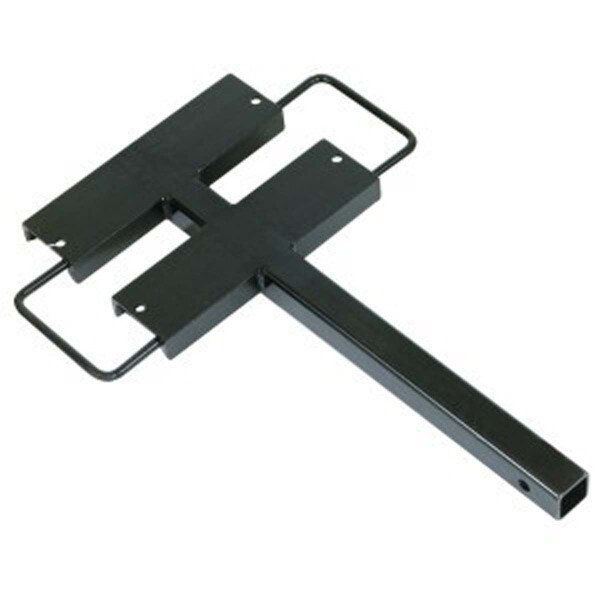

AB Chance Flat Hitch Mount
Faster than any other method, this job-ready mount puts a capstan hoist in the right position for pulling, stringing and lifting jobs. With the hoist stored on it, the mount’s square tube simply inserts and pins in any 2"-square receiver of a Class III or IV towing hitch. Now, capstan hoists can be as universal as this type of trailer hitch is to most service vehicles.

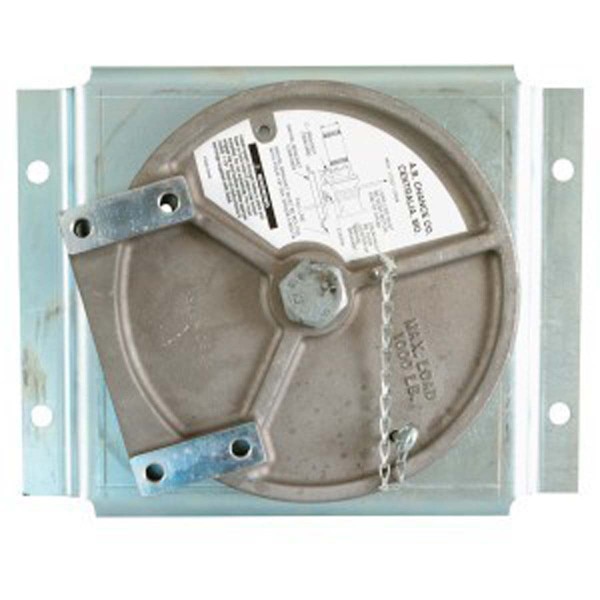

The AB Chance T3080999 Capstan Winch Hitch Mount features a hole pattern specifically designed to fit the AB Chance C3080903 Swivel Bracket. The swivel mount’s turntable design permits proper alignment without repositioning service vehicle. The swivel mount permits pinning the bracket at every 15-degree interval around the circular base for stringing, tensioning, sagging conductors; pulling in the cable; hoisting equipment; setting poles; pulling vehicles.
The AB Chance Hitch Mount is rated at 1,000 lb. to correspond with the ratings of capstan hoists for which it is intended.
Only 12V, 115V, and Hydraulic 1,000-lb.-rated hoists are recommended for truck mounting.

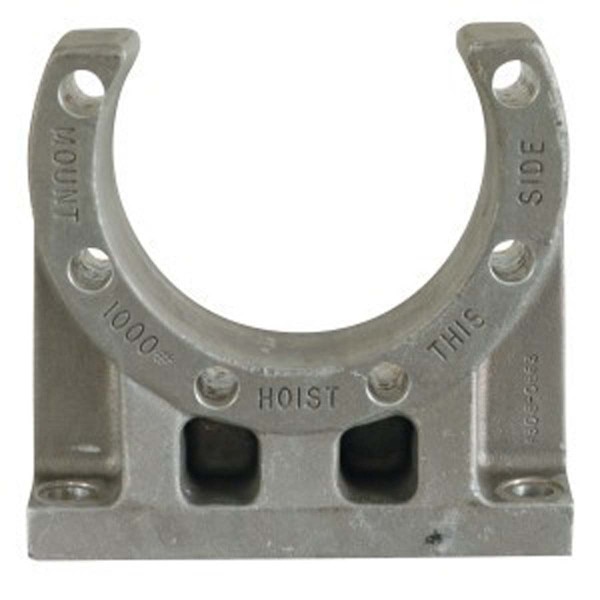

*Requires the use of C3080890 C-Bracket and C3080903 Swivel Bracket or T3081506 Swivel Bracket with C-Bracket
The AB Chance T3080999 Capstan Winch Hitch Mount features a hole pattern specifically designed to fit the AB Chance C3080903 Swivel Bracket. The swivel mount’s turntable design permits proper alignment without repositioning service vehicle. The swivel mount permits pinning the bracket at every 15-degree interval around the circular base for stringing, tensioning, sagging conductors; pulling in the cable; hoisting equipment; setting poles; pulling vehicles.
The AB Chance Hitch Mount is rated at 1,000 lb. to correspond with the ratings of capstan hoists for which it is intended.
Only 12V, 115V, and Hydraulic 1,000-lb.-rated hoists are recommended for truck mounting.
*Requires the use of C3080890 C-Bracket and C3080903 Swivel Bracket or T3081506 Swivel Bracket with C-Bracket
